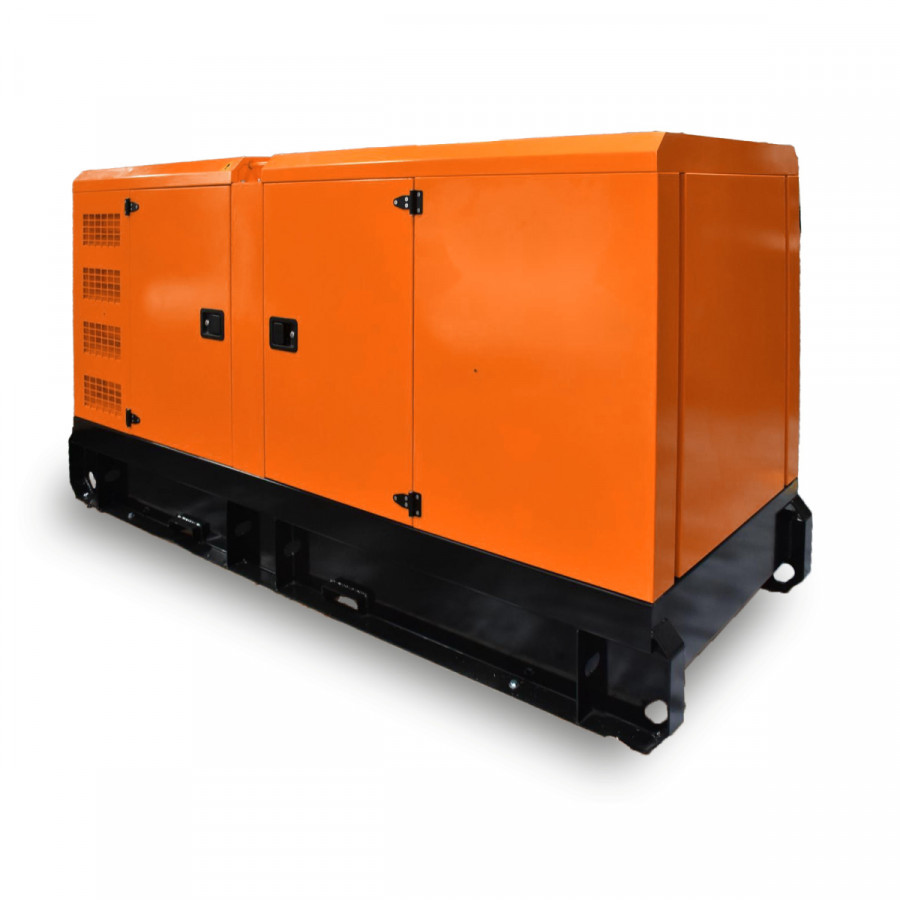

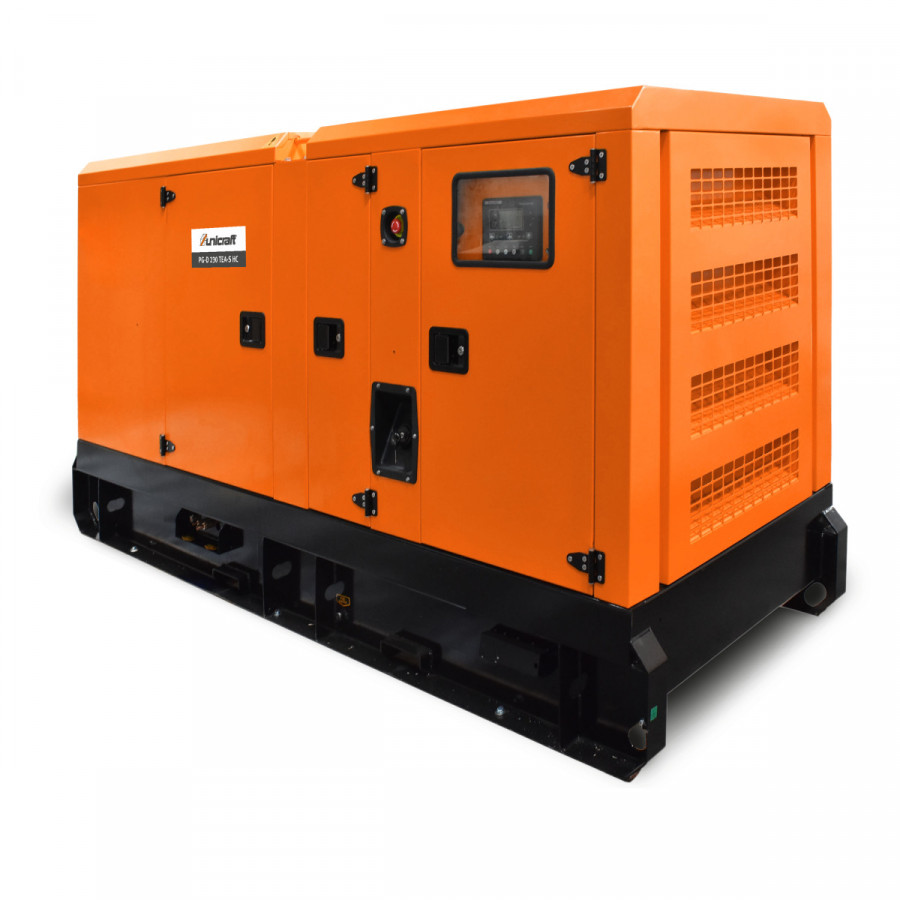

Synchronous power generator PG-D 230 TEA-S HC, Unicraft
Produkta kods:6740123&UC
Nosūtīt pieprasījumu
Tehniskā specifikācijaDiesel power generator for home feeding
Long running times thanks to large tank
Including 1h socket and changeover switch
Includes insulation monitoring for all outlets except 1h socket
Suitable for domestic feed-in with manual mains isolator switch

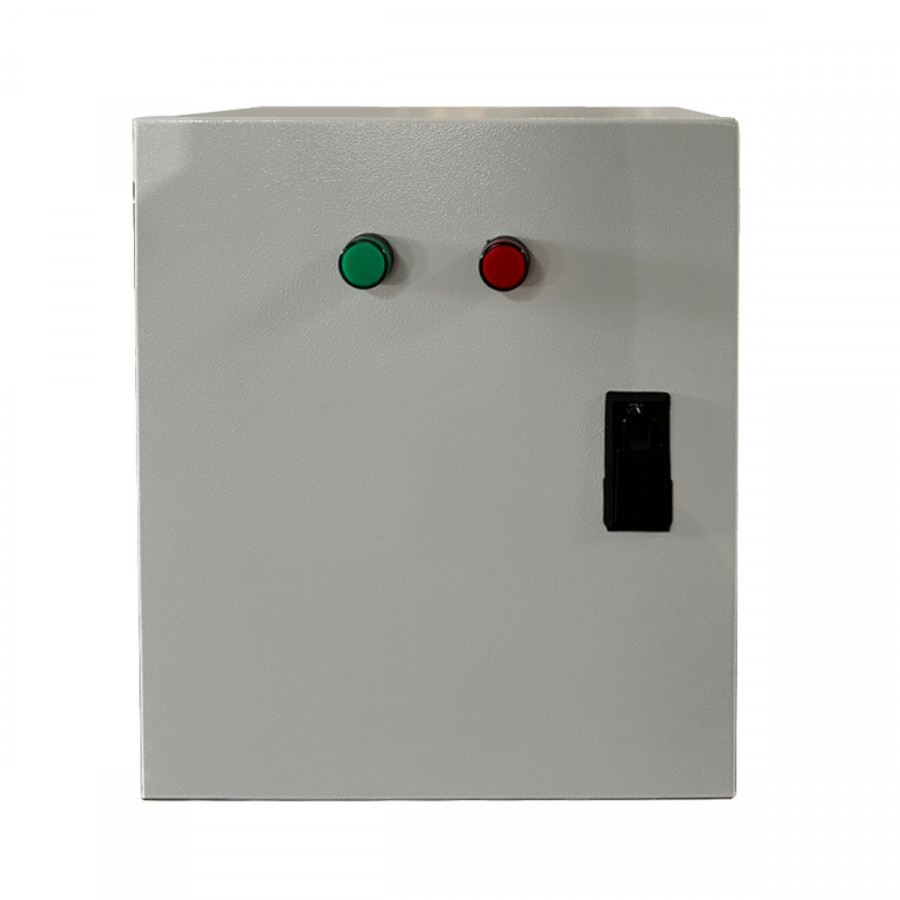

Also equipped with connection for automatic mains disconnector
Soundproofed diesel engine (complies with noise and exhaust emission regulations)
Connections ergonomically located on the side of the appliance in a control panel with digital display (DC voltage, output power, AC voltage, frequency, amperage, operating hours)
Splash and impact protection thanks to full cladding
Electronic voltage regulation AVR
Low oil indicator
Convenient starting at the touch of a button with E-Start
With preheater for quick and easy starting even in cold temperatures
Equipped with high-quality "Stamford generator"
Drive 4D20G00/5
Emission standard Euro 5
Power factor 0.8Cos ɸ
Starter E-Start
Fuel diesel
Tank capacity 60l
Running time at 50% load 10h
Running time at 100% load 8h
Oil tank capacity 5,5l
Coolant capacity 8l
Sound pressure level Lp 75dB(A)
Sound power level Lw 97dB(A)
Mains frequency 50Hz
Type Synchronous
Nominal voltage 230 / 400V
Limited output power (apparent power) 6.9 / 23kVA
Limited output power (active power) 5.4 / 18kW
Continuous output power (apparent power) 6.0 / 20kVA
Continuous output power (active power) 4.8 / 16kW
Speed generator 1500min¯¹
Generator IP degree of protection IP 23

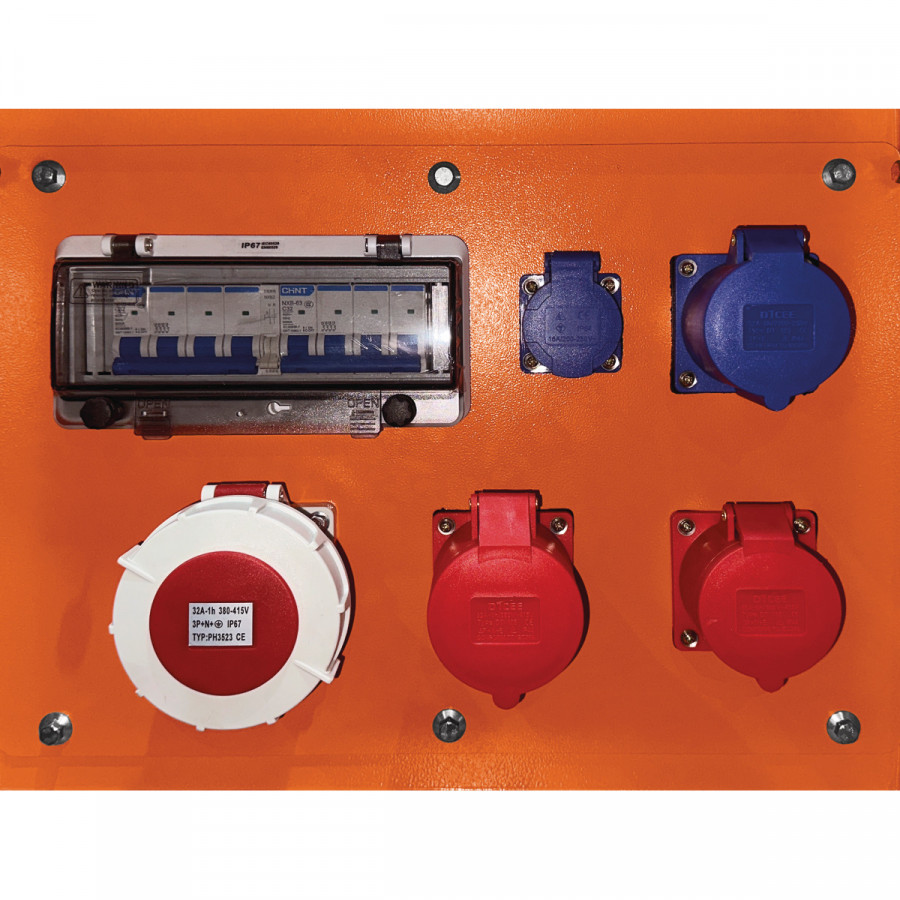

Socket type 1x 230V, 16 A, Schuko / 1x 230V, 32 A, CEE / 1x 400V, 16 A, CEE / 1x 400V, 32 A, CEE / 1x 400V, 32 A, 1h Socket IP degree of protection IP 44
Length (product) approx. 2050mm
Width/depth (product) approx. 850mm
Height (product) approx. 1150mm
Net weight approx. 780kg
Long running times thanks to large tank
Including 1h socket and changeover switch
Includes insulation monitoring for all outlets except 1h socket
Suitable for domestic feed-in with manual mains isolator switch
Also equipped with connection for automatic mains disconnector
Soundproofed diesel engine (complies with noise and exhaust emission regulations)
Connections ergonomically located on the side of the appliance in a control panel with digital display (DC voltage, output power, AC voltage, frequency, amperage, operating hours)
Splash and impact protection thanks to full cladding
Electronic voltage regulation AVR
Low oil indicator
Convenient starting at the touch of a button with E-Start
With preheater for quick and easy starting even in cold temperatures
Equipped with high-quality "Stamford generator"
Drive 4D20G00/5
Emission standard Euro 5
Power factor 0.8Cos ɸ
Starter E-Start
Fuel diesel
Tank capacity 60l
Running time at 50% load 10h
Running time at 100% load 8h
Oil tank capacity 5,5l
Coolant capacity 8l
Sound pressure level Lp 75dB(A)
Sound power level Lw 97dB(A)
Mains frequency 50Hz
Type Synchronous
Nominal voltage 230 / 400V
Limited output power (apparent power) 6.9 / 23kVA
Limited output power (active power) 5.4 / 18kW
Continuous output power (apparent power) 6.0 / 20kVA
Continuous output power (active power) 4.8 / 16kW
Speed generator 1500min¯¹
Generator IP degree of protection IP 23
Socket type 1x 230V, 16 A, Schuko / 1x 230V, 32 A, CEE / 1x 400V, 16 A, CEE / 1x 400V, 32 A, CEE / 1x 400V, 32 A, 1h Socket IP degree of protection IP 44
Length (product) approx. 2050mm
Width/depth (product) approx. 850mm
Height (product) approx. 1150mm
Net weight approx. 780kg
