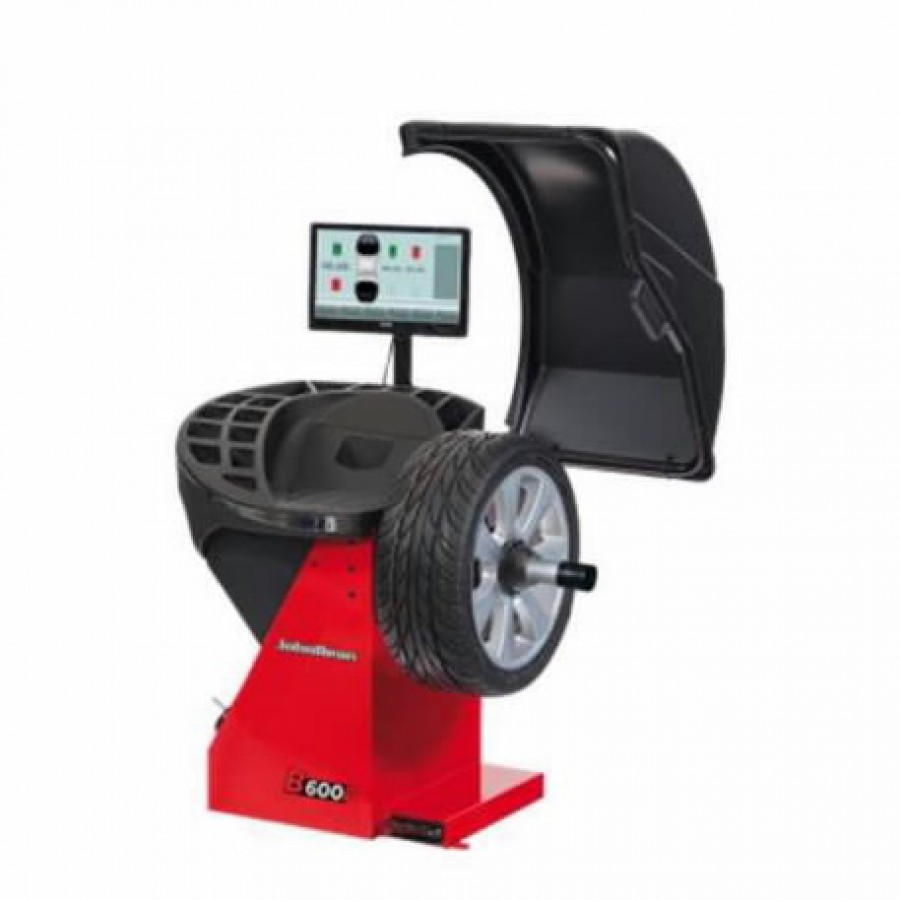

Riteņu balansēšanas iekārta B600p , John Bean

Technical Features:

Max. diameter of centre bore diameter (mm) 43 - 116
Shaft diameter (mm) 40
Lenght of shaft (mm) 225
Measuring speed (rpm) 200
Monitor Touchscreen 19
Rim width (Inch) 1 - 20 / 3 - 15
Rim diameter (Inch) 8 - 25
Rim diameter - manual input (Inch) 8 - 32
Wheel width max. (mm) 508
Wheel diameter max. (mm) 1050
Wheel weight max. (kg) 70
Wheel distance input semi-automatic / gauge arm
Input of rim diameter semi-automatic / gauge arm
Input of rim width automatic
Power supply 230 VAC 1ph 50/60 Hz
Width (mm) 1124
Depth (mm) 1054
Height (mm) 1262
Weight (kg) 130
Noise level (dB (A)) < 70

Key Features

" High-productivity wheel balancer
" Touchscreen monitor with graphical user interface GOLD - improved intuitiveness and ergonomics
" easyWeight: Pinpoint laser light indicator to accurately and conveniently position adhesive weights on the wheel.
" Semi-automatic input of offset and rim diameter via 2D SAPE and automatic rim width acquisition via Smart Sonar - fast and easy
" Semi-automatic pre-selection of balancing mode via easyAlu
" Rim lighting to facilitate rim cleaning and speed up data entry and weight positioning
" Imbalance minimisation and optimisation programs
" VPI measurement technique for uncompromised accuracy
" QuickBal for reduced measurement time:
Short start-stop cycle time: 4.5 seconds (15" rim)
" New ergonomic weight tray
" torque-controlled Power Clamp device instead of quick nut and the Stop-in-Position feature where the operator only has to touch the amount of unbalance on the screen and the wheel is automatically indexed to correction position
" Set of 3 centring cones, ART weight removing tool for adhesive weights, weight pliers, rim width callipers, calibration weight, wheel guard
