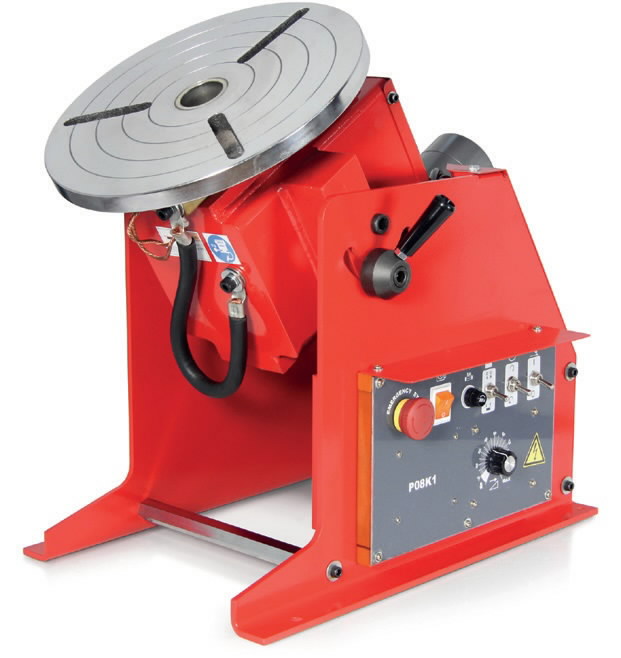

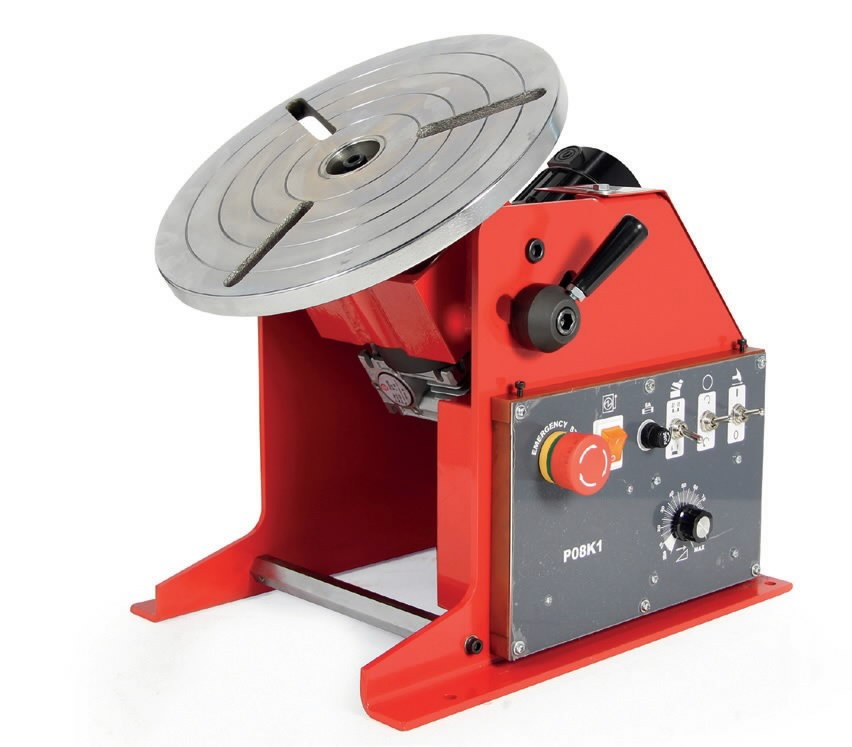

The turntable PRO 08 has a precise drive unit with faceplate that is mounted on a stable floor stand.
The tilting bracket offers the possibility to put the work piece via a tilting range of 0 - 90 ° into the required welding position.
The surface of rorary table is chrome-plated to protect it against weld spatters.
The control panel of the device is easy to understand and operate.
Start/stop with a location-independent foot switch.
Adjustment of the turning speed and the rotation direction directly via the machine.
HF-protected.
Technical description:
2-axis, mechanical welding positioner.
Workpiece can be positioned over range of 0-90 degrees.
Table diameter 300mm.
Speed 0,7 - 7 rounds per minute.
Direction - left/right.
Maximum load 80kg
Size 450 x 330 x 360mm.
Earth connection - 300A/100%.
230V-1ph.
Weight 36kg.
Scope of delivery:
1 x controller (integrated).
1 x foot switch.
When choosing your positioner, please consider:
- the center of gravity of your workpiece.
- the weight of your tensioning device (chuck).
Warning!
The housing of the turntable must be connected to the house grounding.
