3402615_11_150115_Kopie_04

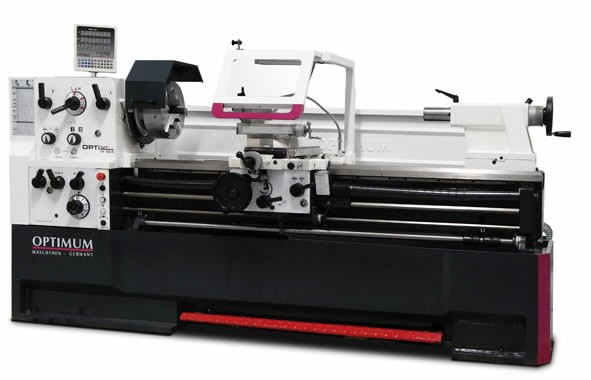

Metal lathe OPTIturn TH 4615D, Optimum

3462120&OPTIMUM , C   EAN: 4030635030949
Connection 400 V / 3 Ph ~50 Hz
Total connected load 5.8 kW
Power of the coolant pump 100 W
Driving motor spindle 5.5 KW
Spindle taper MT 6
Spindle seat Camlock DIN ISO 702-2 Nr. 6
Spindle hole, rod passage 58 mm
Quadruple tool holder seat height max. 25 x 25 mm
Centre height 230 mm
Centre width 1,500 mm
Turning Ø over lathe bed 465 mm
Turning Ø over cross slide 270 mm
Turning Ø in the bed bridge 690 mm
Length of bed bridge 240 mm
Bed width 300 mm
Spindle speed 25 - 2,000 min-1
Number of steps 12 steps
Travel top slide 125 mm
Travel cross slide 285 mm
Longitudinal feed in the range of 0.031 - 1.7 mm/U; 42 feeds
Transverse feeds in the range of 0.014 - 0.784 mm/U; 42 feeds
Pitch - Metric in the range of 0.1 - 14 mm/U; 41 thread pitches
Pitch - Inch in the range of 112 - 2 Gg/1; 41 thread pitches
Diametral pitch in the range of 4 - 112; 50 trapezoid thread
Modular threads in the range of 0.1 - 7; 34 modular thread
Tailstock seat MT 4
Tailstock- sleeve diameter 60 mm
Tailstock- sleeve travel 130 mm

Dimensions (Length x Width x Height) 2,750 x 1,245 x 1,568 mm

Net weight 1,810 kg
Izlasiet pilnu aprakstu →
Nosūtīt pieprasījumu
×

Nosūtīt pieprasījumu

  • Apraksts
  • Pieejamie daudzumi
  • Connection 400 V / 3 Ph ~50 Hz
    Total connected load 5.8 kW
    Power of the coolant pump 100 W
    Driving motor spindle 5.5 KW
    Spindle taper MT 6
    Spindle seat Camlock DIN ISO 702-2 Nr. 6
    Spindle hole, rod passage 58 mm
    Quadruple tool holder seat height max. 25 x 25 mm
    Centre height 230 mm
    Centre width 1,500 mm
    Turning Ø over lathe bed 465 mm
    Turning Ø over cross slide 270 mm
    Turning Ø in the bed bridge 690 mm
    Length of bed bridge 240 mm
    Bed width 300 mm
    Spindle speed 25 - 2,000 min-1
    Number of steps 12 steps
    Travel top slide 125 mm
    Travel cross slide 285 mm
    Longitudinal feed in the range of 0.031 - 1.7 mm/U; 42 feeds
    Transverse feeds in the range of 0.014 - 0.784 mm/U; 42 feeds
    Pitch - Metric in the range of 0.1 - 14 mm/U; 41 thread pitches
    Pitch - Inch in the range of 112 - 2 Gg/1; 41 thread pitches
    Diametral pitch in the range of 4 - 112; 50 trapezoid thread
    Modular threads in the range of 0.1 - 7; 34 modular thread
    Tailstock seat MT 4
    Tailstock- sleeve diameter 60 mm
    Tailstock- sleeve travel 130 mm

    Dimensions (Length x Width x Height) 2,750 x 1,245 x 1,568 mm

    Net weight 1,810 kg Attēliem ir ilustratīva nozīme.
    + Parādīt vairāk
  • Plānotais piegādes datums pēc apstiprinājuma saņemšanas 24.07.2020
