Joint fixture (8 mm DOMINO dowel cross-cuts): D8
Panel thickness: 18 – 28 mm
DOMINO routing depth for base part: 28 mm
Drilling diameter for Euro bolt: 5. mm
Drilling diameter in base part: 15.00 mm
The new DOMINO basic structure connectors and furniture connectors enable stable yet flexible furniture designs that can be separated again. Because of their great versatility, they provide for a very large range of applications – from corner panel joints to centre panel joints to joints between a series of holes. For unique flexibility, speed and efficiency.
The clever DOMINO system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly
The connectors' large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
The flush-screwed fixture elements protect each furniture component from being scratched
Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture
The new detachable DOMINO basic structure connectors and furniture connectors are perfectly suited for a panel thickness of 18 mm to 28 mm

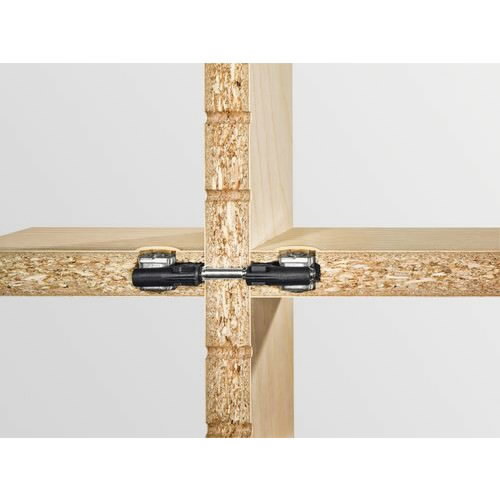

for 25 centre panel joints with the DF 500 and drilling series of holes
drill template is required for drilling holes in the surface of the DOMINO D 8 mm joint fixture

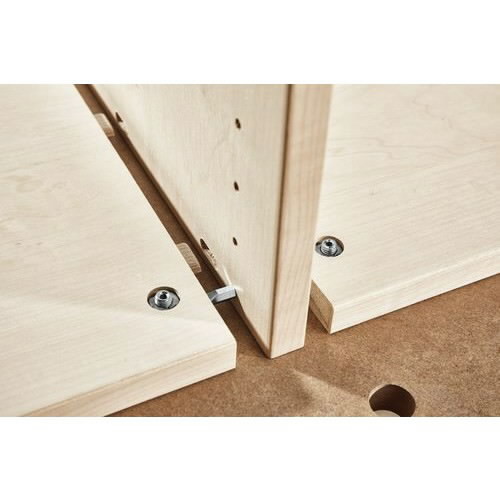

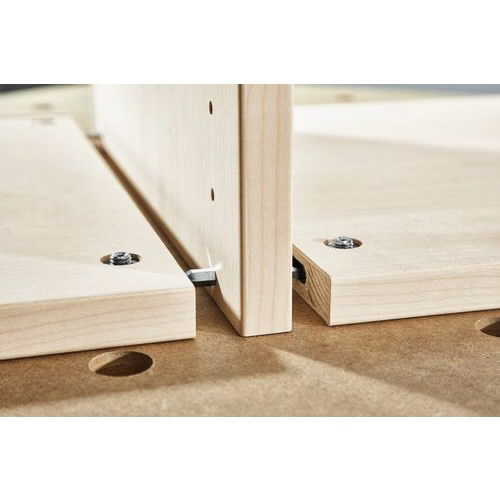

the DOMINO/LR 32 MSV-LR 32 D8/25 connector is positioned both in the cupboard panel in a 5 mm hole in the series of holes and the base of the structure with the DOMINO jointer DF 500
Scope of delivery:

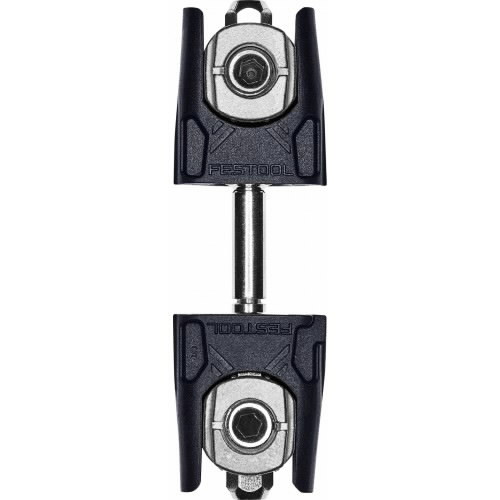

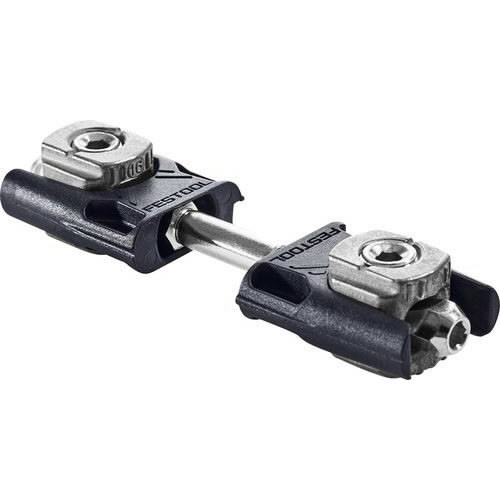

Bolt with external thread for centre panel connector
Bolt with internal thread for centre panel connector
Cross anchor with threaded pin
Without cover caps
Delivered in carton Attēliem ir ilustratīva nozīme.
