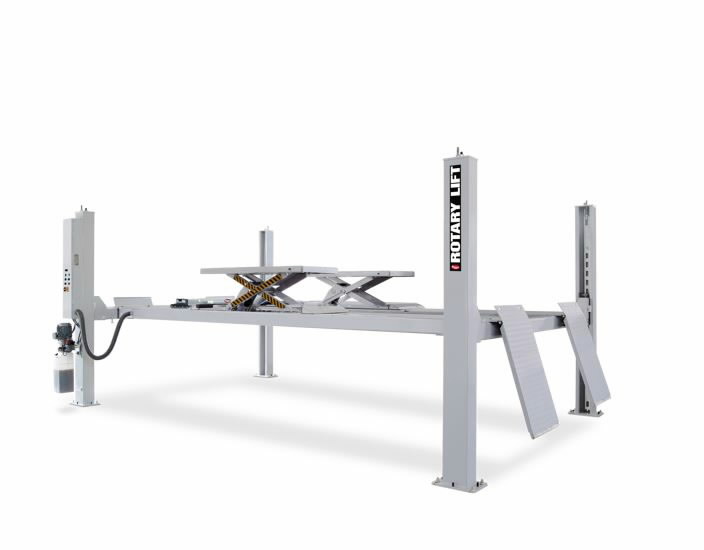

Lifting Capacity 4000 kg
Lifting Capacity wheels free lift 3000kg
Stroke (with wheel alignment kit) 1957 (+66) mm
Overall length with drive-on ramps (with ramp extensions) 6088mm (6488mm)
Total Width 3472 mm
Drive-on height (with wheel alignment kit)167 (+50) mm
Platform length 4700 mm
Platform width 560 mm
Distance between platforms 800/950/1100 mm
Electrial connection 400 V, 50 Hz, 3 Ph
Motor 4 kW
Time of full rise approx. 45 Sek.
Weight 2250 kg
Izlasiet pilnu aprakstu →
11200.00 €
Nosūtīt pieprasījumu
×
Nosūtīt pieprasījumu
Apraksts
Pieejamie daudzumi
Lifting Capacity 4000 kg
Lifting Capacity wheels free lift 3000kg
Stroke (with wheel alignment kit) 1957 (+66) mm
Overall length with drive-on ramps (with ramp extensions) 6088mm (6488mm)
Total Width 3472 mm
Drive-on height (with wheel alignment kit)167 (+50) mm
Platform length 4700 mm
Platform width 560 mm
Distance between platforms 800/950/1100 mm
Electrial connection 400 V, 50 Hz, 3 Ph
Motor 4 kW
Time of full rise approx. 45 Sek.
Weight 2250 kg Attēliem ir ilustratīva nozīme.
+ Parādīt vairāk
Galvenā noliktava
1 gab
