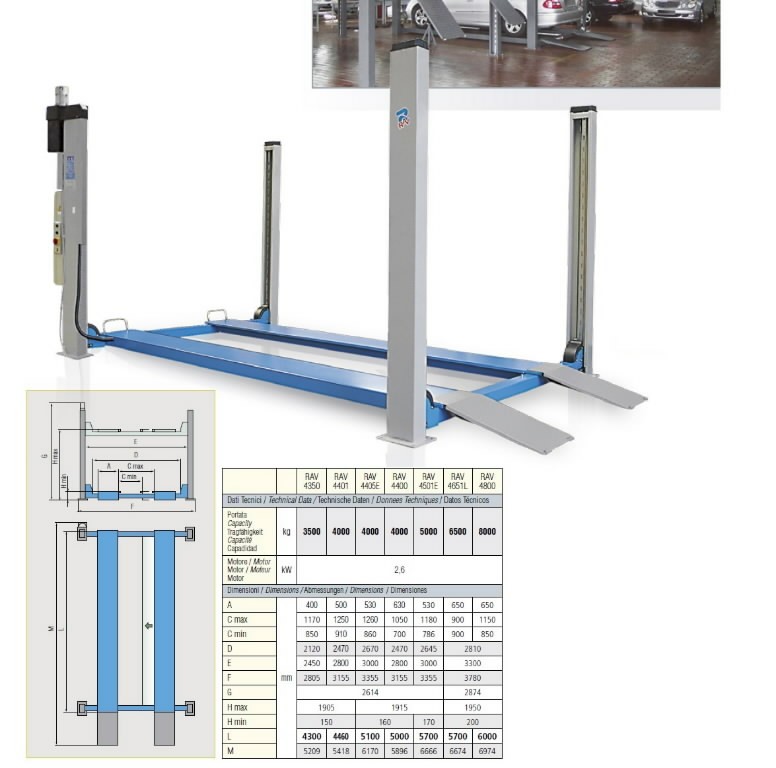

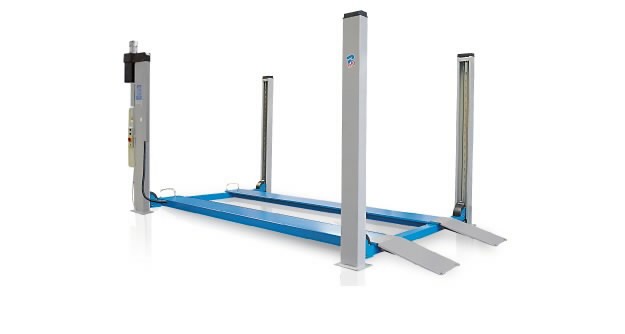

Ravaglioli's 4405E Electro-Hydraulic Wheel Alignment Lift has been specifically designed for the job of wheel alignment, though the lift can still operate as normal when wheel alignment isn't required. The long platforms (5100 mm) and the large inner distance between posts allow lifting of light commercial vehicles and long-wheelbase vans.
In regards to safety features, the RAV 4000 Series comes prepared with an automatic back-up safety device for every 100 mm of the lift with pneumatic release allowing stationary operation with unladen cables. What's more, the lift holds an immediately triggering safety stud devices in case a cable slackens or fails. Automatic anti-toe trapping alarms will sound during the final stages of the lift lowering. And mechanical, electrical, and hydraulic safety devices in compliance with the prevailing standard for CE marketing.
•Maximum Lifting Capacity - 4,000 Kg
•Platform Length - 5100 mm
•Mechanical, Electrical and Hydraulic Safety Devices - To prevailing CE standards
•Hydraulic Cylinder - Fitted inside the platform to ensure that it is perfectly protected
•Large-diameter Pulleys - With self-lubricating bushes, that help to make it maintenance-free
•High-resistance Cables - Made of pre-stretched metal and galvanized for longer durability
•Adjustable Platform - Accommodates different vehicle tracks and optimises access to the underside of the vehicle
•Low Voltage - 24V Electrical system with control circuit
•Surface or Recessed Installation Available
•3 Phase Power (400V)
•Wheel-free Scissor Lift - 3,500 Kg Capacity, hydraulically synchronised movement
