Technical specifications:
Capacity 4000kg
Lifting height 2050mm
Lifting time 26s
Lowering time 14s
Lowest lifting point 115-190mm
Long arm extraction 1130-1840mm
Short arm extraction 570-1160mm
Drive through width 2509mm
Distance between columns 2766mm
Total width 3350mm
Total height of the column 4040mm
Required ceiling height 4182mm
Motor capacity 3kW
Power 400V/50Hz

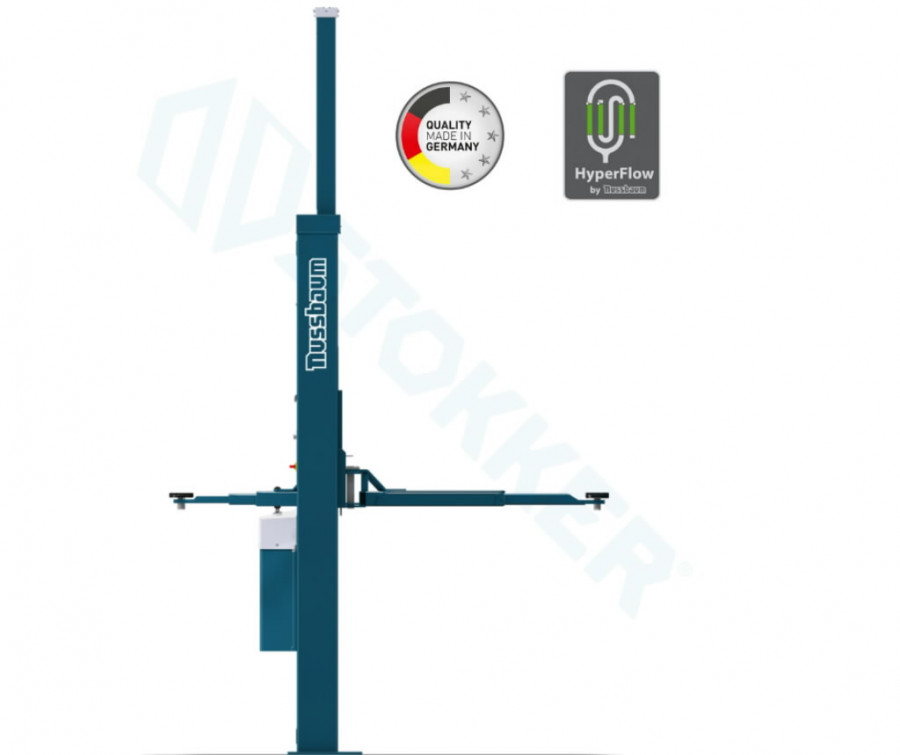

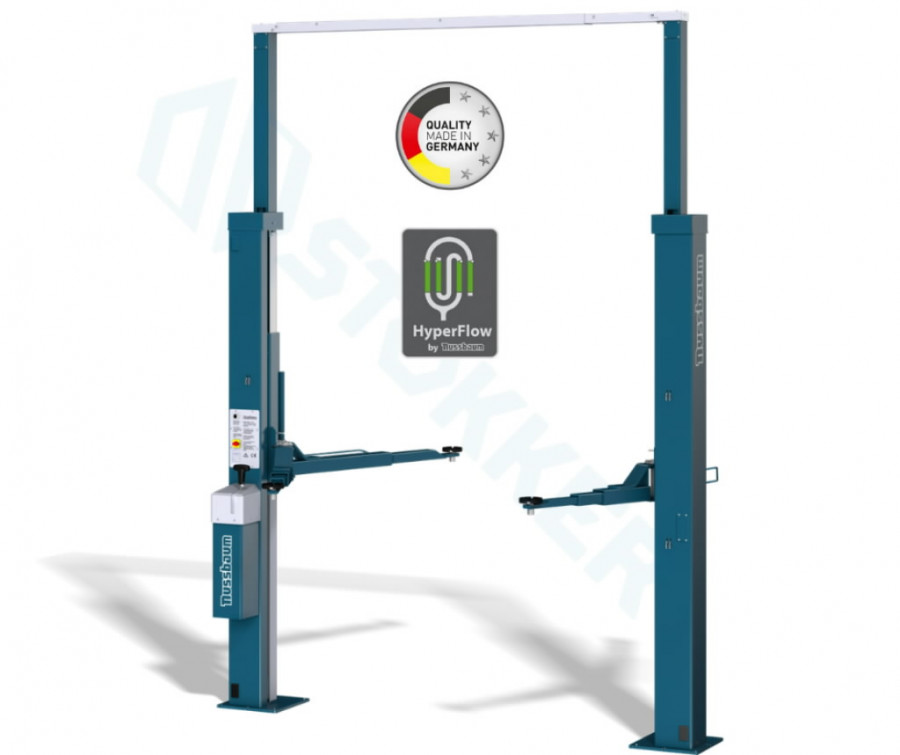

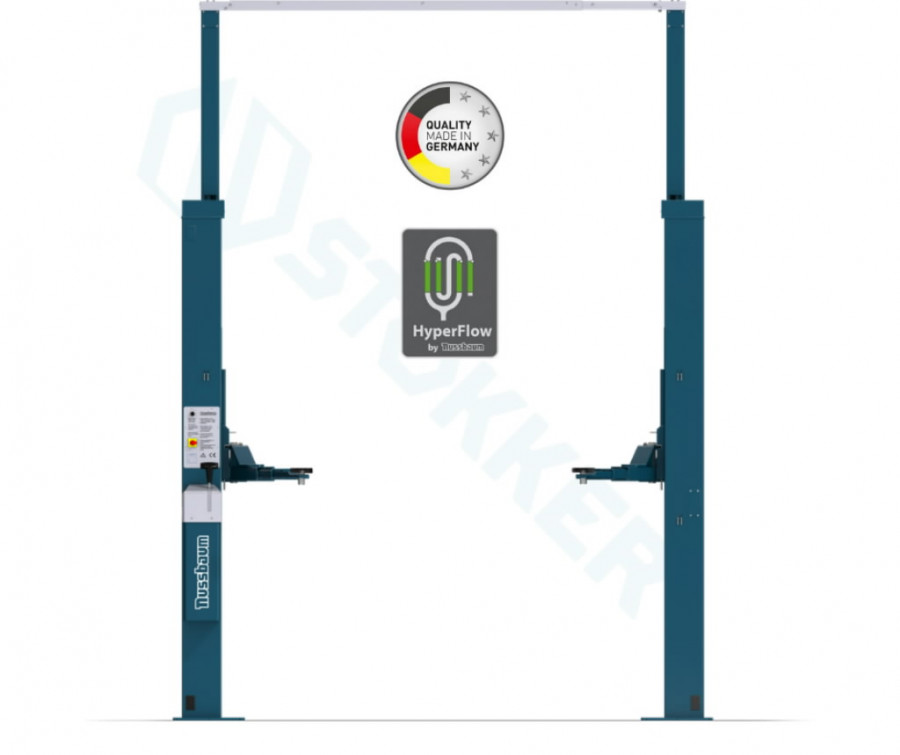

Fully hydraulic two-post lift with patented HyperFlow® technology and mechanical safety latch for triple security. Quiet running motor, faster lifting and lowering cycles. Controls via

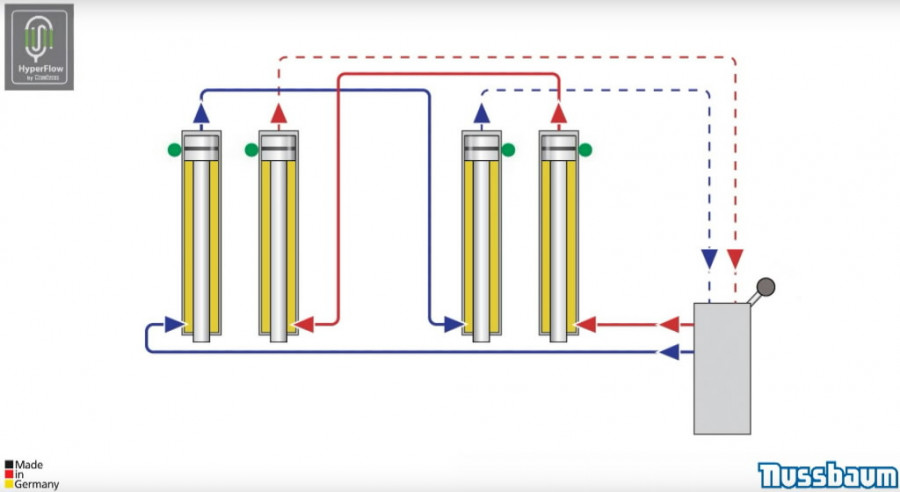

commander lever. Simple and safe synchronous lifting arms compensation via patented HyperFlow® technology replaces mechanical lifting arm compensation using cables. No
base plate connection. Low-maintenance and almost wear-free hydraulic cylinders. Self-purging hydraulic system. Simple and fast assembly. Variable installation width. The lifted
load can be controlled by lowering into and lifting from the park position using the safety latches.
Capacity 4000kg
Lifting height 2050mm
Lifting time 26s
Lowering time 14s
Lowest lifting point 115-190mm
Long arm extraction 1130-1840mm
Short arm extraction 570-1160mm
Drive through width 2509mm
Distance between columns 2766mm
Total width 3350mm
Total height of the column 4040mm
Required ceiling height 4182mm
Motor capacity 3kW
Power 400V/50Hz
Fully hydraulic two-post lift with patented HyperFlow® technology and mechanical safety latch for triple security. Quiet running motor, faster lifting and lowering cycles. Controls via
commander lever. Simple and safe synchronous lifting arms compensation via patented HyperFlow® technology replaces mechanical lifting arm compensation using cables. No
base plate connection. Low-maintenance and almost wear-free hydraulic cylinders. Self-purging hydraulic system. Simple and fast assembly. Variable installation width. The lifted
load can be controlled by lowering into and lifting from the park position using the safety latches.
