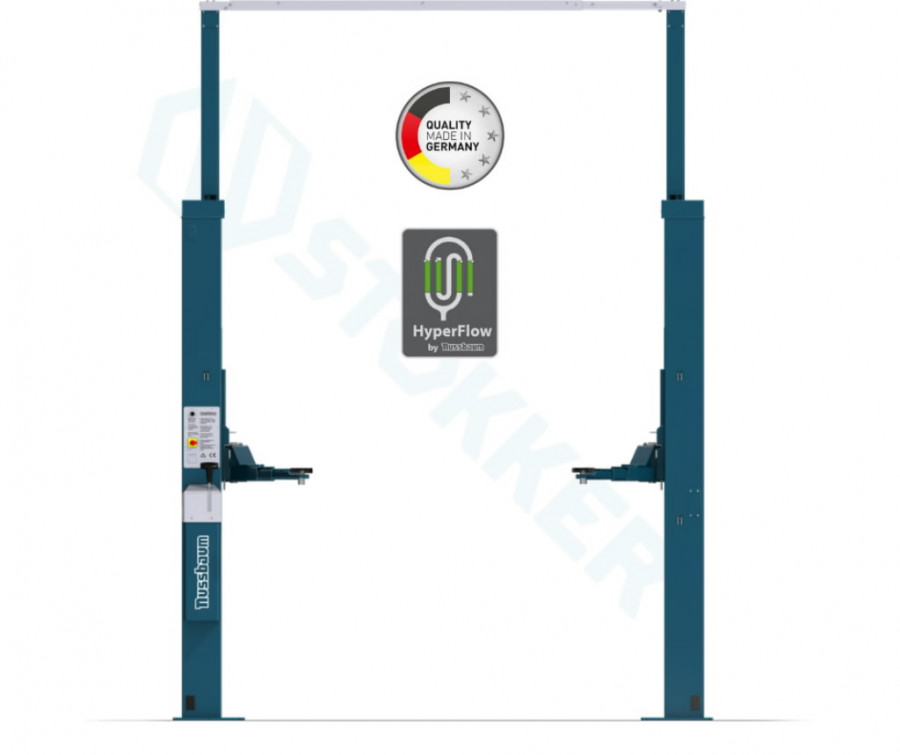

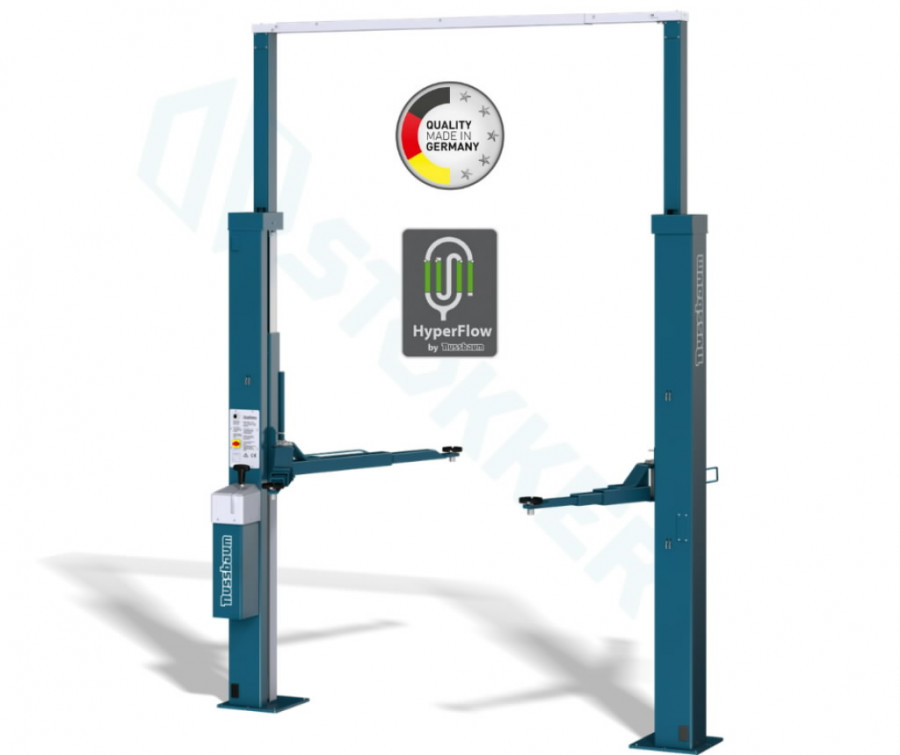

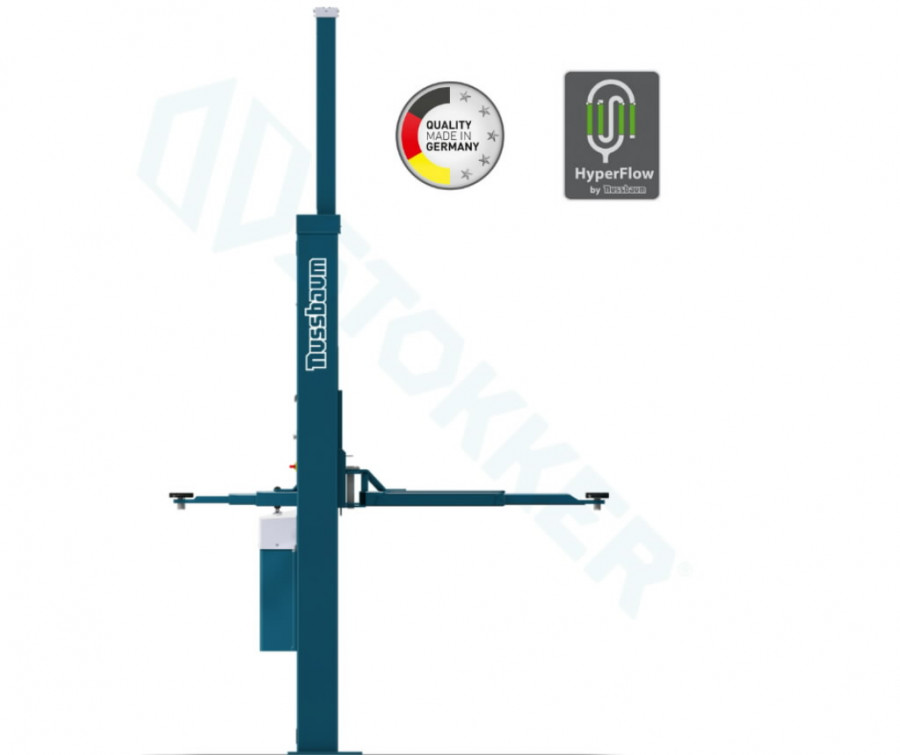

2-statņu pacēlājs POWER LIFT HF 3S 3000 DT 3T, Nussbaum
HLNTK230.0000120D&NB , C
Technical specifications:
Capacity 3000kg
Lifting height 1995mm
Lifting time 20s
Lowering time 14s
Lowest lifting point 95-140mm
Long arm extraction 940-1495mm
Short arm extraction 480-870mm
Drive through width 2301mm
Distance between columns 2560mm
Total width 3100mm
Total height of the column 4040mm
Required ceiling height 4182mm
Motor capacity 3kW
Power 400V/50Hz
Fully hydraulic two-post lift with patented HyperFlow® technology and mechanical safety latch for triple security. Quiet running motor, faster lifting and lowering cycles. Controls via
commander lever. Simple and safe synchronous lifting arms compensation via patented HyperFlow® technology replaces mechanical lifting arm compensation using cables. No
base plate connection. Low-maintenance and almost wear-free hydraulic cylinders. Self-purging hydraulic system. Simple and fast assembly. Variable installation width. The lifted
load can be controlled by lowering into and lifting from the park position using the safety latches.
Izlasiet pilnu aprakstu →
Nosūtīt pieprasījumu
×
Nosūtīt pieprasījumu
Apraksts
Pieejamie daudzumi
Technical specifications:
Capacity 3000kg
Lifting height 1995mm
Lifting time 20s
Lowering time 14s
Lowest lifting point 95-140mm
Long arm extraction 940-1495mm
Short arm extraction 480-870mm
Drive through width 2301mm
Distance between columns 2560mm
Total width 3100mm
Total height of the column 4040mm
Required ceiling height 4182mm
Motor capacity 3kW
Power 400V/50Hz
Fully hydraulic two-post lift with patented HyperFlow® technology and mechanical safety latch for triple security. Quiet running motor, faster lifting and lowering cycles. Controls via
commander lever. Simple and safe synchronous lifting arms compensation via patented HyperFlow® technology replaces mechanical lifting arm compensation using cables. No
base plate connection. Low-maintenance and almost wear-free hydraulic cylinders. Self-purging hydraulic system. Simple and fast assembly. Variable installation width. The lifted
load can be controlled by lowering into and lifting from the park position using the safety latches. Attēliem ir ilustratīva nozīme.
