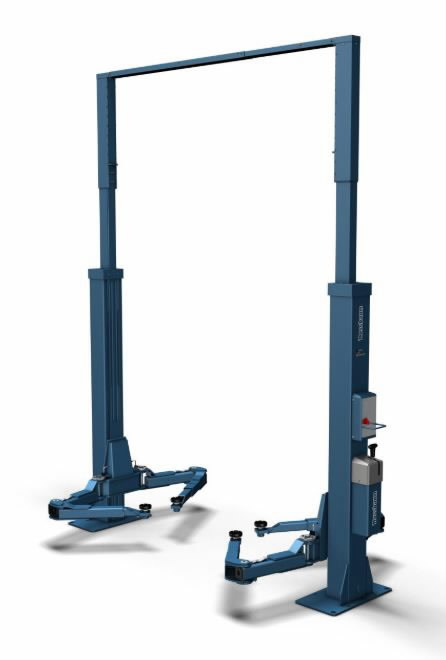

2-post lift POWER LIFT HF 3S 5000 DG, RAL5001, Nussbaum
HLNTK250.0002130D5&N , C
Technical data:
Color: Blue
Lifting capacity 5T
Lifting height 2020mm
Lifting time approx 31sek
Lowering time approx 15sek
Lowest lifting point 120 - 195mm
Long arms extraction 0 - 1825 mm
Short arms extraction 0 - 1825 mm
Drive through width 2790mm
Distance between columns 3090mm
Total width 3750mm
Total height 4020/4865*/5255**
Motor (kW) 3kW
Power supply (V/ Hz) 400V/50Hz
Required ceiling height (mm) 4150mm
HSV 5200mm
* With lift column extensions can be pulled out to 4865mm
**With lift column extensions can be pulled out to 5255mm
Izlasiet pilnu aprakstu →
Nosūtīt pieprasījumu
×
Nosūtīt pieprasījumu
Apraksts
Pieejamie daudzumi
Technical data:
Color: Blue
Lifting capacity 5T
Lifting height 2020mm
Lifting time approx 31sek
Lowering time approx 15sek
Lowest lifting point 120 - 195mm
Long arms extraction 0 - 1825 mm
Short arms extraction 0 - 1825 mm
Drive through width 2790mm
Distance between columns 3090mm
Total width 3750mm
Total height 4020/4865*/5255**
Motor (kW) 3kW
Power supply (V/ Hz) 400V/50Hz
Required ceiling height (mm) 4150mm
HSV 5200mm
* With lift column extensions can be pulled out to 4865mm
**With lift column extensions can be pulled out to 5255mm Attēliem ir ilustratīva nozīme.
