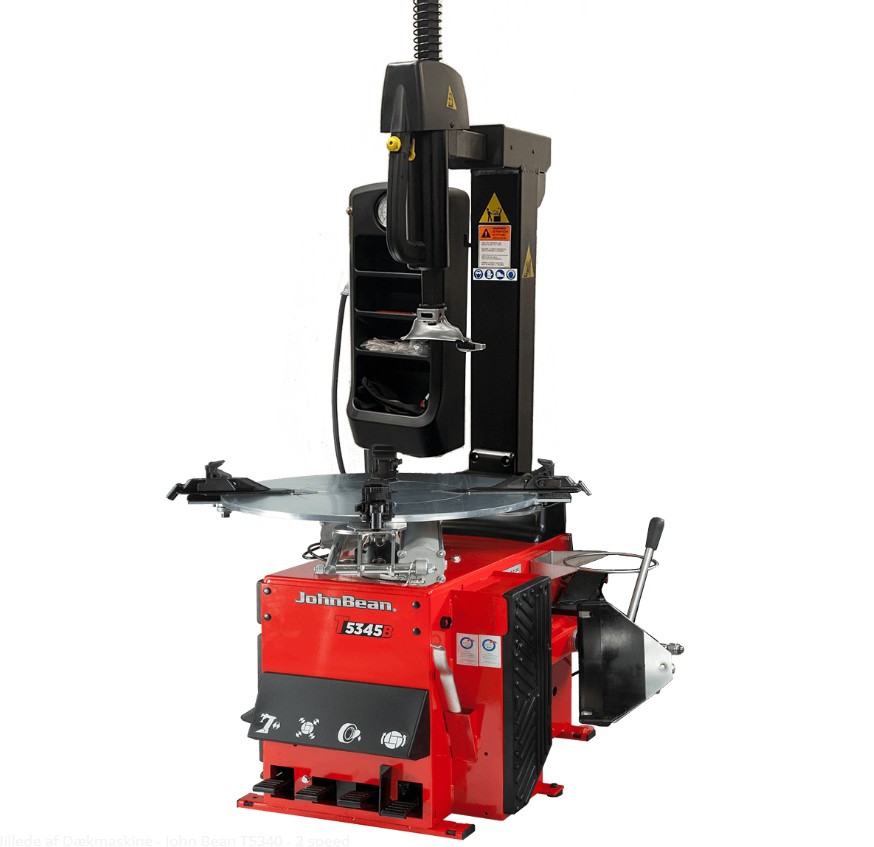

Tyre changer T5340 2S

Key Features •PROspeed – the new exclusive self-adjustable speed system with inverter technology: - Automatic speed control by inverter that maximises speed depending on the torque applied - First speed as low as 7 rpm for critical tasks - Second speed automatically adjusted to between 7 and 18 rpm depending on the torque applied •Double-acting bead breaker cylinder •Mounting head adjustable in spaced-apart position relative to the rim •Sliding jaws with rounded profile and plastic protection inside offer an outer clamping range of 12" to 24", reduced clamping time and increased clamping force owing to cylinder with shorter stroke •Conventional mounting / demounting tool (working range 8" - 24") with steel mounting head and plastic inserts for gentle operation on wheels •Turntable with centre-type sliding jaws. Two clamping cylinders provide 30 to 40 % more clamping force than single-cylinder machines •Pedal-operated pneumatic tilt-back post •Post pneumatically locked in working position •On-side bead breaker with adjustable blade inclination for different wheel diameters, adjustable in three positions to grant high performance and flexibility •Tool box with integrated pressure gauge and three ergonomic shelves for valves, tools and accessories, attached on separate tower •Pedal-operated inflator •Capable of mounting / demounting the majority of wheel assemblies in the market Technical Features Inner clamping range (inch) 12 - 24 Outer clamping range (inch) 10 - 24 Rim width (inch) 3 - 12 Tyre width max. (inch) 13 Wheel diameter max. (mm) 1000 Wheel weight max. (kg) 70 Bead breaking range (mm) 40 - 392 Turntable speed (rpm) 7 / 7-18 Compressed air connection (bar) 8 - 12 Power supply 230 VAC 1ph 50-60Hz 16 A Width (mm) 1220 Depth (mm) 1700 Height (mm) 1870 Noise level (dB(A)) <70 Weight (kg) 310
