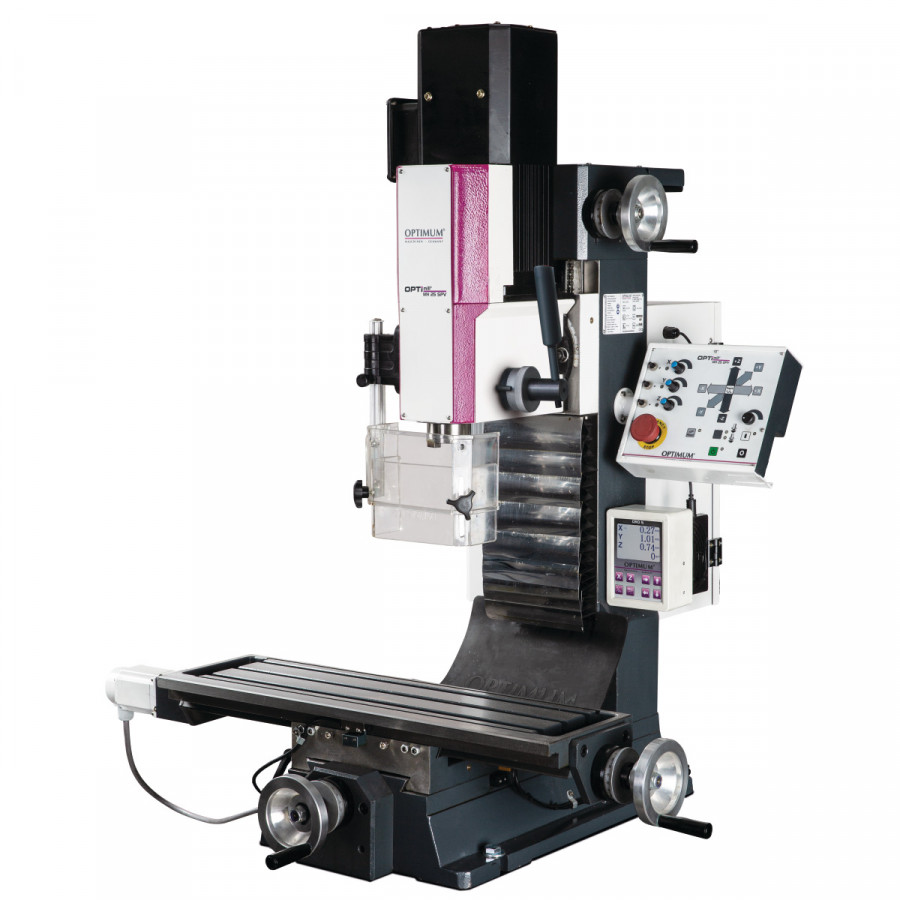

Drilling-milling machine OPTImill MH 25SPV

Sturdy milling machines with electronically infinitely variable drive, stepper motors and DRO 5 digital readout Max. size milling head 50mm Max. size shaft milling cutter 25mm Fast motion speed X axis 150 – 930mm/min Fast motion speed Y axis 100 – 580mm/min Fast motion speed Z axis 80 – 450mm/min Supply voltage 230V/50Hz Horizontal milling table length 620mm Horizontal milling table width 180mm Min. clearance vertical spindle - horizontal milling table 0mm Max. clearance vertical spindle - horizontal milling table 300mm Horizontal milling table T-groove size 12mm Horizontal milling table T-groove number 3 Horizontal milling table T-groove spacing 50mm Horizontal milling table max. load bearing capacity 30kg Travel X axis manual 400mm Travel Y axis manual 210mm Travel Z axis manual 270mm Travel X axis automatic 380mm Travel Y axis automatic 130mm Travel Z axis automatic 190mm Vertical spindle reach 185mm Vertical spindle spindle chuck BT 30 Vertical spindle speed range 200 – 4000min¯¹ Vertical spindle number of gears 1 Vertical spindle speed control electronically adjustable Vertical spindle drive motor output normal operation 1,5kW Vertical spindle drive motor torque 10Nm X axis feed speed 150mm/min Y axis feed speed 100mm/min Z axis feed speed 80mm/min Feed motor torque X axis continuous operation S1 2.2Nm Feed motor torque Y axis continuous operation S1 2.2Nm Feed motor torque Z axis continuous operation S1 4.2nm Total rated value 2kW
