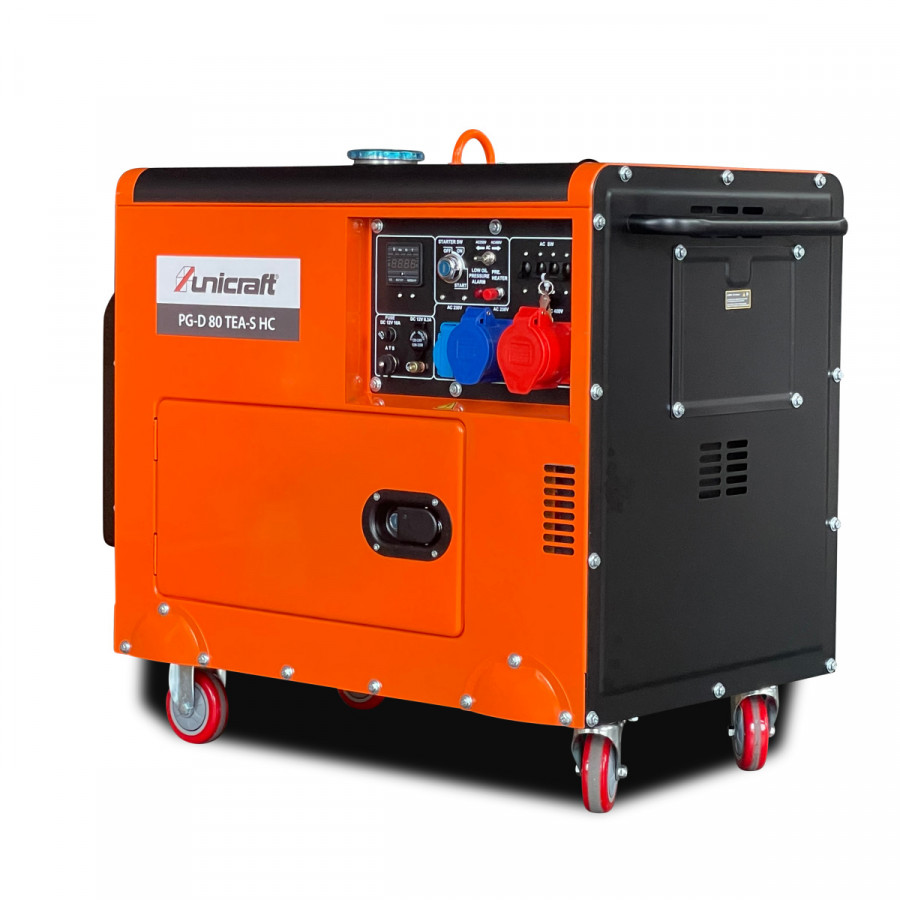

Synchronous power generator 7,0 kW PG-D 80 TEA-S HC

Diesel power generator for home feeding Suitable for house power supply with manual mains disconnector switch Also equipped with connection for automatic mains isolator switch The Equal Power function enables a much higher output power in 230V: With most generators the output power in 230V is approx. 30% of the output power in 400V. With the Equal Power function, an output power in 230V of approx. 80% is achieved! Sound-insulated diesel engine (complies with noise and exhaust emission regulations) Connections ergonomically located on the side of the unit in a control panel with digital display (DC voltage, output power, AC voltage, frequency, amperage, operating hours) Splash and impact protection due to full enclosure Electronic voltage regulation AVR Low oil level indicator Long running times due to large 25 liter tank Comfortable starting at the push of a button with E-Start With pre-heater for fast and trouble-free starting even at cold temperatures Stable chassis with two swivel castors Drive 1100F Power factor 0.8Cos ɸ Starter E-Start Fuel diesel Tank capacity 15l Running time at 50% load 7,5h Oil tank capacity 1,65l Sound pressure level Lp 67dB(A) Sound power level Lw 92dB(A) Max. shift load 30% Mains frequency 50Hz Type Synchronous Nominal voltage 230/400V Limited output power (active power) 7,5kW Continuous output power (active power) 7.0kW Speed generator 3000min¯¹ Generator IP degree of protection IP 23 Socket type 1x 230V 16A Schuko / 1x 230V 32A CEE / 1x 400V 32A CEE / 1x 12V DC Socket IP degree of protection IP 44 Dimensions 950x550x690mm Net weigth 151kg Фото и видео носят иллюстративный характер.
