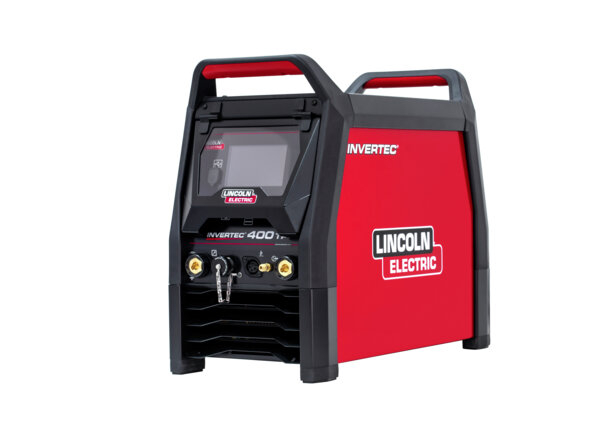

TIG DC metināšanas iekārta Invertec 400TP

The Invertec® 400TP is a new generation TIG inverter which is the next step in professional welding offering excellent welding processes and high performance, to increase productivity. Welding processes: Welding with covered electrodes (MMA), TIG- direct current welding and TIG pulse welding. "Tack for thin" function is ideal for spot welding activities multiple and repetitive where it is essential to create a uniform, controlled look. Synergic TIG mode will set all correct parameters for an easy and qualitative weld. Specifications: Input - 400V ±15%, 3Ph 50/60Hz, generator ready. Light weight - 31,5kg. Welding amperage - 5 - 400A. Duty cycle - 400A@40% / 360A@60% / 300A@100%. USB connectivity provide: - Full system update & diagnostics. - Transfer settings between machines. - Simple welding data collection on USB (start time, average current, average voltage, arc time, welding mode/job number, job name). - Weld quality data monitoring (data on TFT user interface screen or CSV file transfer) - Software updating. Full 3-year warranty. Kit also includes: • Input cable 4 m (no plug) • Gas hose 2 m • Ground cable with clamp 3 m • Metallic clips to fix the hose • USB key with user manual • Quick Start papers • Front UI protection cover Attēliem un video ir ilustratīvs raksturs.
