4530,00 €
Nav noliktavā. Jautājiet piegādes laiku
Maksā pa daļām: 121,93 € mēnesī.
Iegādājoties šo produktu, Jūs saņemsiet 150 bonusa punkti. Uzzināt vairāk
Produkta informācija

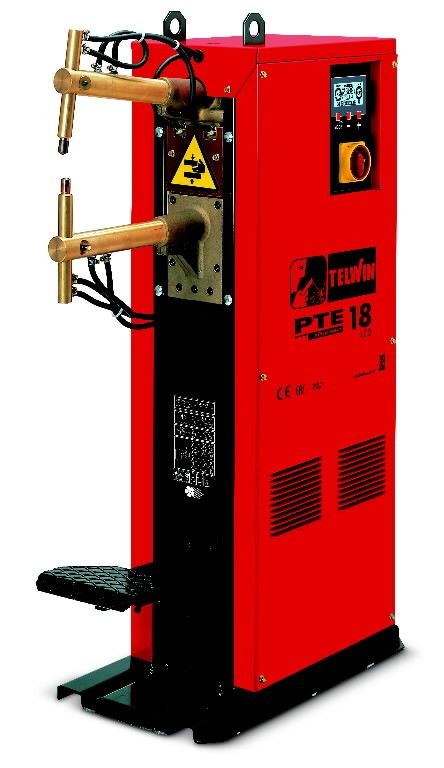

The PTE 18 is a stationary spot welding machine with movable arms and built-in synchronous control thyristors. The machine is equipped with an LCD screen. This guarantees optimal results on different steels. Features: spot welding voltage control (20 to 100%), spot welding time control (1 to 100 cycles), electrode pressure-controlled compressed air. This model requires liquid cooling on the electrodes and arms.
Supply voltage - 400V-2f;
Output voltage - 9700A;
Max no-load voltage - 2.6V;
Power consumption (50%) - 15kVa;
Max metal thickness - 3 + 3mm;
The machine has mechanical arms control (mechanical pedal).
The device comes without a power cord.
Kit does not contain water cooling unit.
- Svars 115 kg
- Svars ar iepakojumu 117 kg
- Izmēri (ar iepakojumu) 82 x 34 x 127 cm
- Pārdošanas vienība gab
- GTIN / EAN 8004897971551
- Ražotāja preces kods 824050
