Eļļas tvaiku filtrs MistWizard MW-2 (ar ventilatoru 3f)

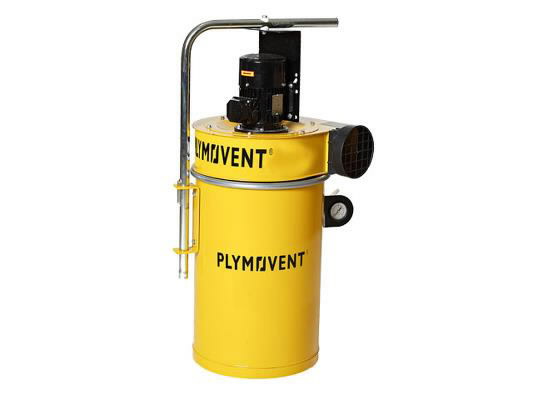

The MistWizard MW-2 for wall mounting. The filter effectively collects the coolant mist and smoke from the machine process and returns the recovered coolant back to the machine tool. The MistWizard features a three-way filter system: • AquaSpin cyclonic inlet • oil coalescing filter wrapper; filter class G3 • CoolantTec hydrophobic filter cartridge A pressure gauge indicates the degree of saturation of the filter cartridge. Kit contains the MistWizard oilmist filter and FUA-1800 fan. Technical data: Oilmist filter dimensions H = 600 mm / D 420 mm; Filter (CoolantTec) 10 m²; Extraction fan input 400V/3ph/50Hz; Energy consumption 0,55 kW; Max air volume 1000 m³/h; Control - with manual switch; Overall height 1070 mm; Overall weight 25 kg. Attēliem un video ir ilustratīvs raksturs.
