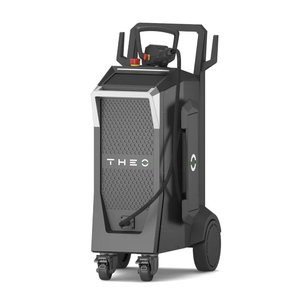

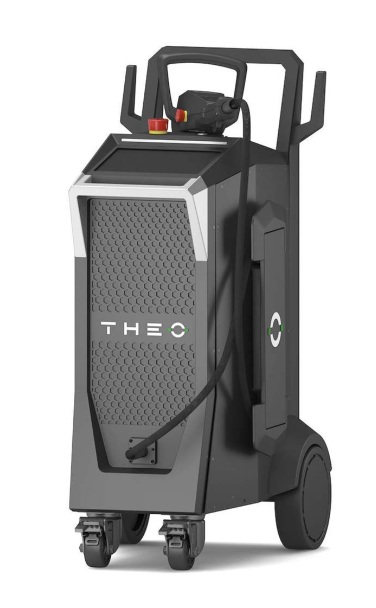

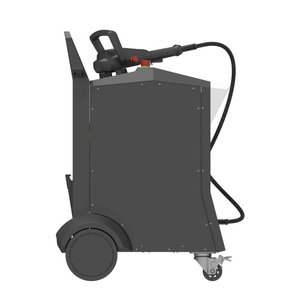

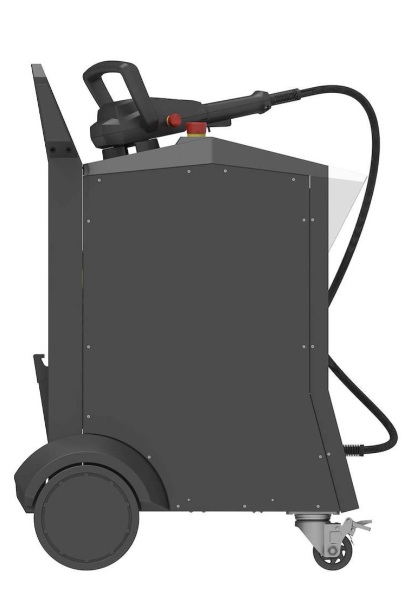

Laser cleaning machine Maxphotonics Theo TM-300 G (Gaussian)

The THEO TM-300 G (Gaussian) is a handheld, MOPA-based fiber laser cleaning system that removes rust, paint, oxides, and other contaminants in seconds — with no abrasives, chemicals, or post-cleanup required. The Gaussian beam version concentrates energy into a tight, high-intensity 30 μm spot, making it the precise choice for deeper contamination such as oxide and rust removal. Air-cooled and requiring no external chiller, it's built for real workshop use. Key highlights: - Portable design: 46 ± 3 kg - Certified safety and quality (CE, FDA, FCC) - Precise 30 μm beam profile — ideal for deeper oxide/rust removal - Cleaning speed up to 1 m²/min - Scan speed up to 7500 mm/s - Includes 3 interchangeable field lenses + 1 protective lens - 10.4" touchscreen with handle-side controls - Built-in distance meter for instant focal-point lock - Lightweight cleaning head (≤2 kg) — fatigue-free all-day use - Works on stainless steel, aluminum, structural steel, copper, stone, and select woods and plastics - Engineered by Maxphotonics — the world's leading fiber laser expert Key features: MOPA pulsed technology — short, controlled bursts, minimal heat spread into the base metal Smart shut-down — laser fires only when aimed at the workpiece Dual-channel interlocks — stops operation unless all safety conditions are met Fiber breakage detection with instant alerts and pinpoint diagnostics Real-time visual distance feedback Four scan patterns: line / circle / wave / dynamic Adjustable fill spacing (hatch pitch) 0–50 THEO Toolbox app — device registration, extended warranty, THEO Academy access Technical specifications: Nominal power: 300 W Laser type: Pulsed (MOPA) Wavelength: 1060–1070 nm Pulse frequency: 165–8000 kHz Pulse width: 10–500 ns Single pulse energy: ≤ 1.8 mJ M²: ≤ 1.6 Fiber core diameter: 30 μm Fiber length: 5 m Cooling: Air-cooled Input voltage: 100–240 V, 50/60 Hz Operating temperature: 0–40 °C Weight: 46 ± 3 kg Dimensions (W×D×H): 960 × 677 × 417 mm Warranty: 1 year (2 years once registered) Certification: CE, FDA, FCC Cleaning head specifications: Aperture: 10 mm Process wavelength: 1064 ± 5 nm Cleaning field: 70×70 mm (160 mm lens) / 130×130 mm (254 mm) / 150×150 mm (330 mm) Scan speed: 7500 mm/s Field lens: 160/254/330 mm, interchangeable Scan radius (circle): 5–35 mm (160 mm) / 5–65 mm (254 mm) / 5–75 mm (330 mm) Weight: ≤ 2 kg Dimensions: 373 × 179 × 205 mm Attēliem un video ir ilustratīvs raksturs.
