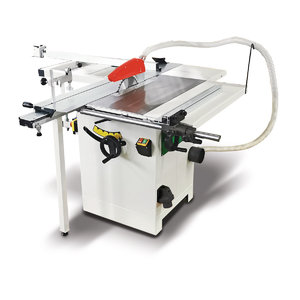

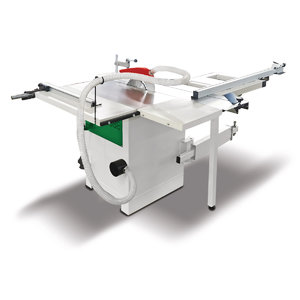

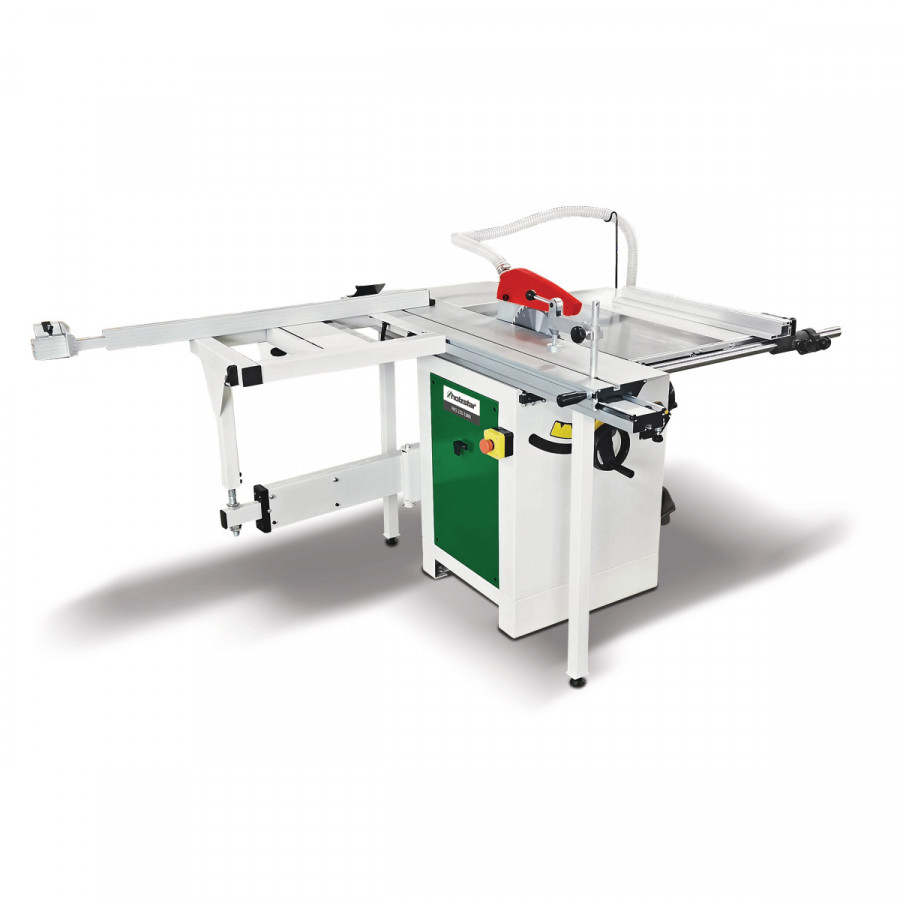

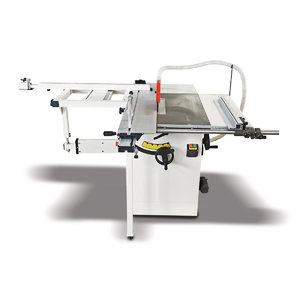

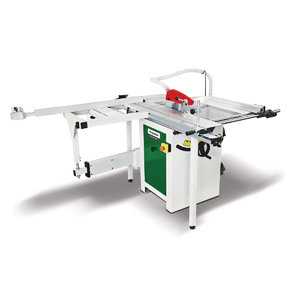

Formātzāģis FKS 255-1300 (230 V)

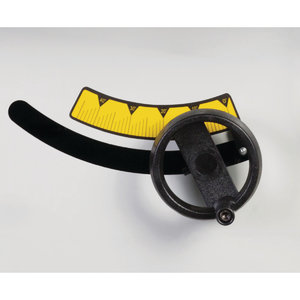

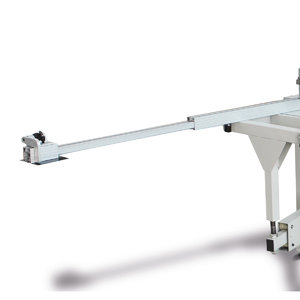

Robust and precise design with swivel saw blade Heavy grey cast iron work table for low-vibration work and precise, straight cuts Saw unit can be swivelled up to 45 degrees, adjustment via handwheel Cutting plane directly on the saw blade Table boom with extendable telescopic stop and two folding stops for plates and large workpieces Telescopic stop swivelling by 45 degrees on both sides Aluminum parallel stop on round rod guide with fine adjustment Standard table widening and extension allow easy work with larger workpieces Large central suction connection with 100 mm diameter Supply voltage 230V Mains frequency 50Hz Absorbed power drive motor 2,1kW Output power (motor power) 1,5kW Total rated value 9,3A Motor speed 2800min¯¹ Trimming frame length 600mm Trimming frame width 460mm Sliding carriage length 1320mm Sliding carriage width 238mm Table length 790mm Table width 350mm Work height 835mm Sound pressure level 83,7dB(A) Max. cutting width with rip fence 610mm Max. cross cut width left from saw blade 845mm Trimming length 1250mm Saw blade angle 90-45° Max. cutting height 90° 80mm Max. cutting height 45° 54mm (Main) saw blade diameter 254mm (Main) saw blade speed 4000min¯¹ Extraction port diameter bottom 100mm Saw blade protection extraction port diameter 30mm Delivery Contents: Eccentric clamp Angle stop -45° to +45° Circular saw blade 254 x 30 x 3.0 mm Z40
