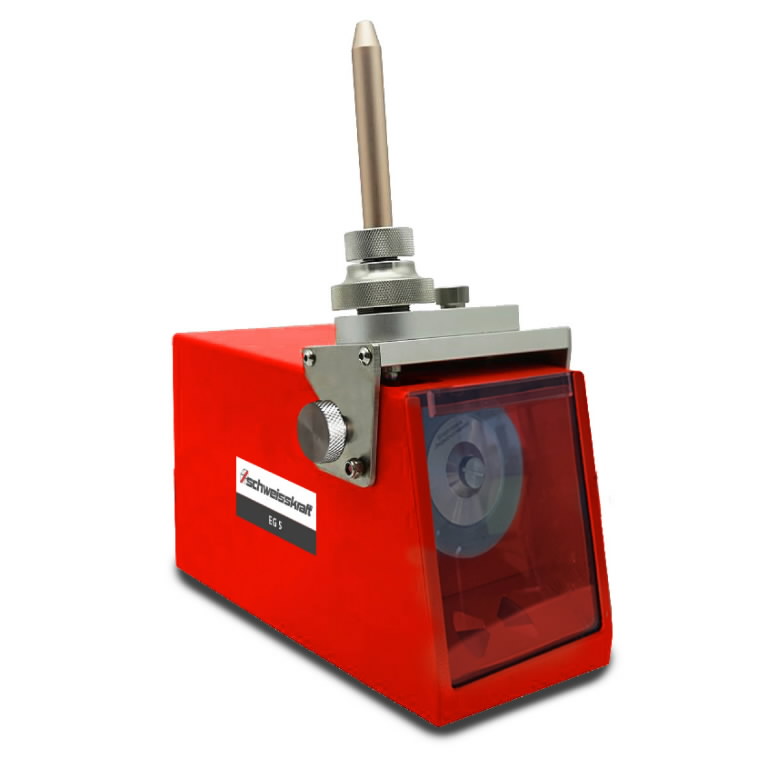

Volframa elektrodu asinatājs EG 5

For perfect grinding of tungsten electrodes with a diameter of 1.6 to 5 mm. Grinding angle continuously variable from 0 to 60 degrees. Stop for setting the correct grinding length integrated in device. Precise grinding in longitudinal direction for improved ignition properties, stable arc and longer lifetime. Unproblematic grinding, even down to a length of just 50 mm, spherical tip or drops of metal. Clamping possible when wearing work gloves via easy-action knurled screw. Grinding dust easily removable via a drawer. Technical specifications: Electrode diameter 1,6 - 5,0mm Min. electrode length 35mm Grinding angle 15 – 60° Speed 6500rpm Diamond disk diameter 90mm Length (product) approx. 225mm Width/depth (product) approx. 150mm Height (product) approx. 195mm Net weight approx. 4.1kg Drive motor output 0.07kW Supply voltage 230V Scope of delivery: Diamond disc Ų 90 mm One collet each 1,6 / 2,0 / 2,4 / 3,2 / 4,0 mm.
