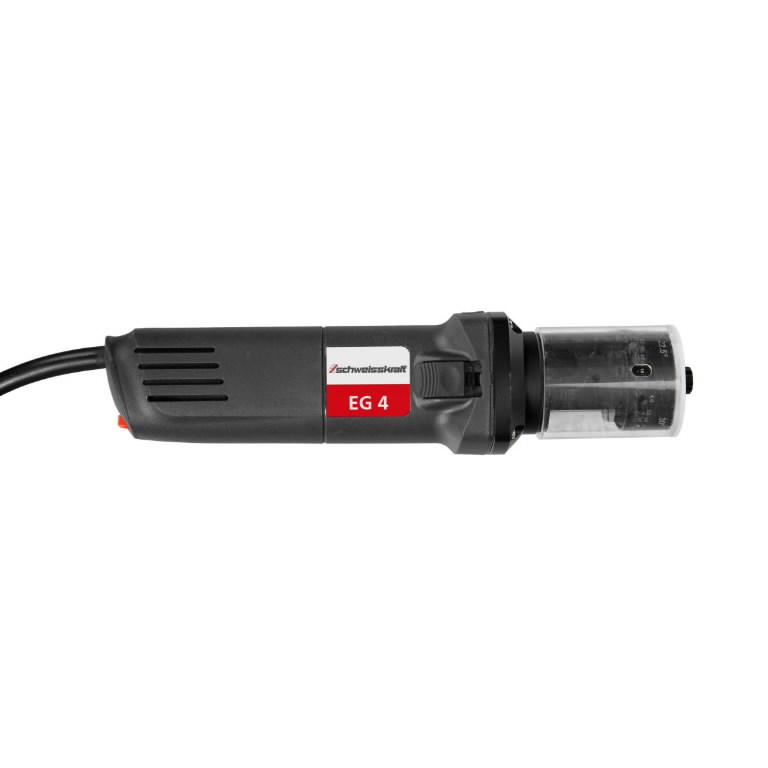

Volframa elektrodu asinatājs EG 4

For perfect grinding of tungsten electrodes with a diameter of 1.0 to 4.0 mm. Handy device, optimal for use in the workshop. Easy handling due to preset grinding angles and diameters. Integrated 5-step speed regulation via rotary wheel. Easy to change grinding wheel. Grinding angle 15°, 18°, 22.5° and 30° selectable. Technical specifications: Electrode diameter 1,6 - 4,0mm Min. electrode length 30mm Grinding angle 15 – 30° Speed 0-11000 rpm, 5 stage Diamond disk diameter 33,5mm Length (product) approx. 340mm Width/depth (product) approx. 76mm Height (product) approx. 76mm Net weight approx. 1,6kg Drive motor output 0.75kW Supply voltage 230V Kit contain: Diamond disc Transport case. Attēliem un video ir ilustratīvs raksturs.
