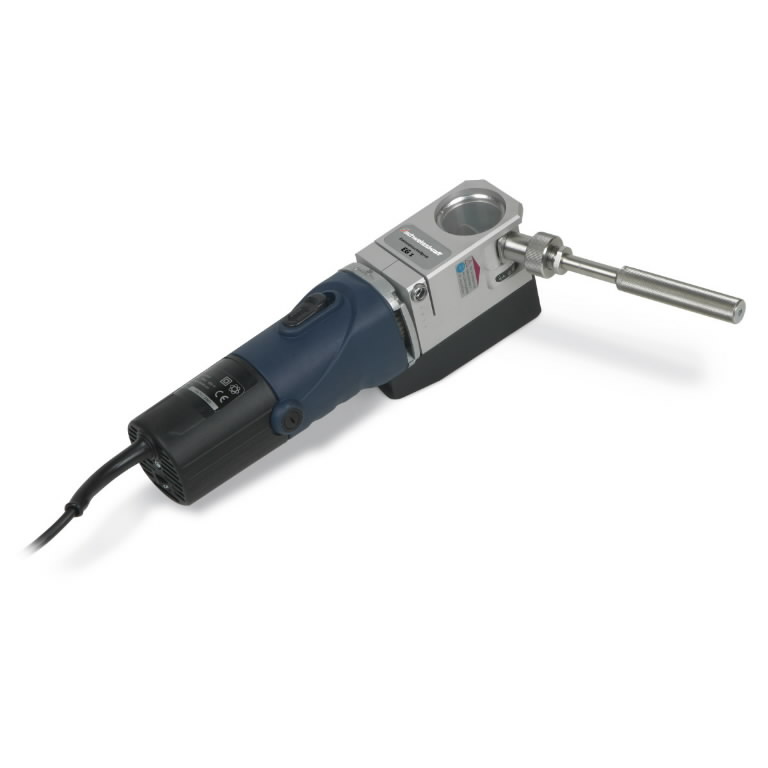

Volframa elektrodu asinatājs EG 1

Optimised for use in the workshop and on site. Minimal material removal on the electrode of just 0.3 mm thanks to integrated setting gauge. The electrode can be reground up to 200 times, instead of just 50-100 times. Integrated extraction unit with P3 dust filter, thus optimum protection for the operator. Continuously adjustable speed control via adjusting knob. Also for grinding short electrodes (up to 15 mm), e.g., for orbital welding equipment. Electrodes with metal drops can be ground directly; this saves time and avoids breaking the electrode. Powerful 850 Watt motor. Technical specifications: Electrode diameter 1,6 - 4,0mm Min. electrode length 22mm Grinding angle 15 – 180° Speed 8000-22000rpm Diamond disk diameter 40mm Net weight approx. 3,8kg Drive motor output 0.85kW Supply voltage 230V Scope of supply: Electrode holder Diamond disc 40 mm Collets for electrodes 1.6/2.4/3.2 mm Inbus key 2 mm Inbus key 4 mm Wrench 13/17 Wrench 13/14 Disposal bags for disposable filters Plastic case Attēliem un video ir ilustratīvs raksturs.
