Product info
Rear plain mower
Hitch CAT 2
All Kubota mowers are equipped with Triangular Counter-Rotating Discs, 3 blades per disc for constant cutting - clean cut, less wear for blades
Fully welded cutterbar design, no bolt connections
Very low power consumption and noise level - thanks to specially designed cutterbar bearings and transmission details
Hydraulic suspension for precise and easy setting of ground pressure and superb adaptation
Easy lift on headlands without activating the 3pt linkage of the tractor
Direct drive of the cutterbar – the drive going directly to the first disc – no spill of working width - more precise power transmission
Horisontal transport - going under low hanging three and hedges is no issue with the DM3300 series, unlimited visibility to the rear of tractor
Cutting width 3,2 m
Transport width <3,0 m
PTO 540 rpm, overrun clutch + friction clutch
8 discs each with 3 blades
Cutting height 30-60 mm
Mowing angle: -15/+15
BreakAway, NonStop, spring loaded auto reset
Hydraulic lift on headlands up to 400 mm
Supplied with two mounting options of the mowing section, what ensures optimal overlap between a front and rear mounted unit
Swath disc (RH)
Integrated tool box for knives
Weight 805 kg
Power requirement min 55 hp
No of hydraulic outlets: 1D

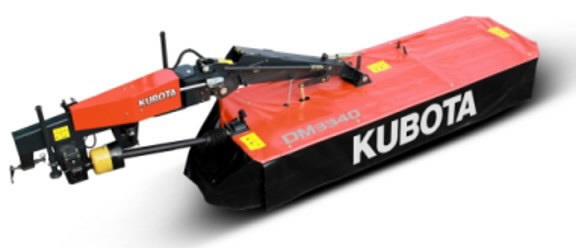

Pictures are illustrative and for non-contractual use
* high cut skids 40mm
* protection cutterbar-end
As optional parking stand available
Manufactured in Denmark
Warranty 2 years
