Product info

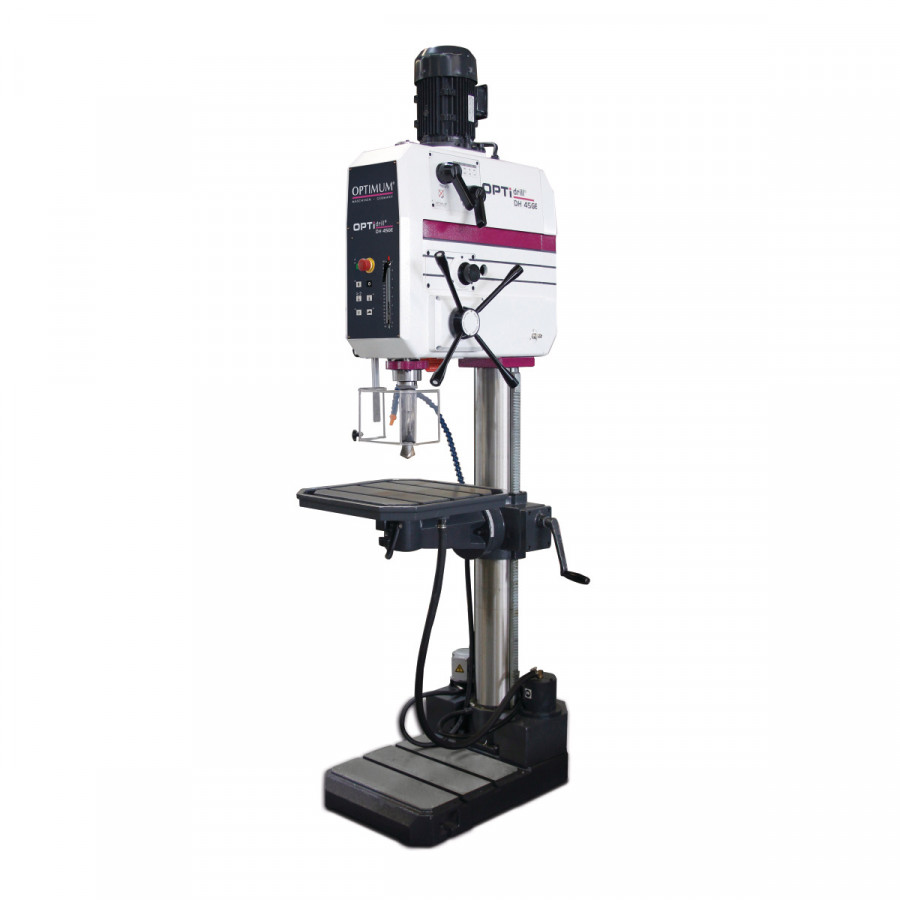

Heavy-duty version with thread cutting device
Heavy, solid cast design
Dirt and water-resistant, easy-to-clean membrane keypad
24V DC electronics
Machine light
Drilling depth stop
Solid base plate with precise surface finish
Coolant device, chip filter
Tapping device
Extremely stable, thick-walled cast column
Equipment:
Electrically operated quill feed
Oil pump
Programmable feed cut-off
Easy-to-read digital display
Digitally adjustable drilling and thread depth
Digital zero point can be set
Drilling performance steel (S235JR) 40mm
Continuous drilling performance steel (S235JR) 35mm
Thread tapping steel (S235JR) M30
Drilling table workspace length 530mm
Drilling table workspace width 530mm
Drilling table T-groove size 18mm
Speed range 90-1520min¯¹
Number of gears 8Steps
Drive motor output 2.2kW
Supply voltage 400V
Mains frequency 50Hz
Quill stroke 170mm
Spindle chuck MT 4
Reach 350mm
Quill feed automatic
Quill feed speed 0.1 – 0.25mm/rev
Quill feed gears 3Steps
Net weight approx. 550kg
Delivery Contents:
Quick-action drill chuck 1-16 mm
Tapered arbor for drill chuck MK4/B16
