Factory order. Ask for delivery time
Product info

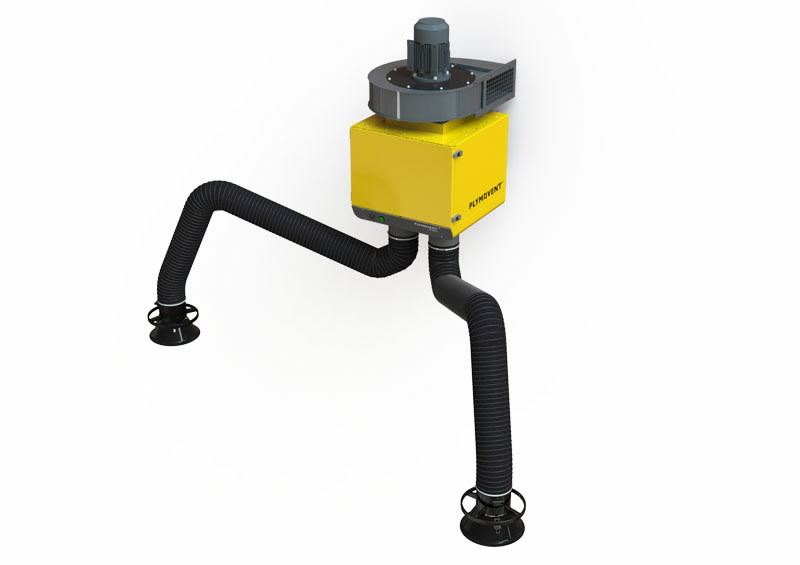

The DualGo is a stationary welding fume filter with two extraction arms and an integrated fan.
It contains a disposable filter package and switch box with rotary switch 0-1 to control the fan.
HEPA filter surface 26m2. Welding fume class W3.
Fan 2,2kW. Max. extraction capacity 1700 m³/h.
Extraction arms length 2m, diameter 160mm.
Fan outlet transition from rectangular to round diam.250mm.
Stationary filter dimensions (without extraction arms, incl. fan H x W x D): 1100 x 633 x 746 mm.
Connection voltage 400V/3ph/50Hz.
Sound level 79 dB(A).
- Weight 80 kg
- Weight with package 80 kg
- Dimensions (with package) 63 x 75 x 101 cm
- Sales unit pcs
- GTIN / EAN 8717491174715
- Manufacturer part number 0000111462
