Product info

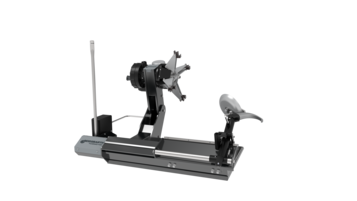

TC850 HD – The Ultimate Heavy-Duty Truck Tyre Changer with Self-Centering Chuck
A powerful and robust solution for mounting and demounting truck and heavy-duty tyres.
Self-Centering Chuck
Four powerful jaws ensure secure clamping of rims of all shapes and profiles.
Clockwise and counter-clockwise rotation at 7 rpm.
Hydraulic opening and closing with adjustable pressure.
Three clamping zones and six different rim-clamping configurations.
Powerful Mounting & Demounting Tool Arm
Manual adjustment of tool inclination and direction.
Easy tool rotation between bead breaking and bead extraction.
Quick and manual movement of the tool arm closer to or further away from the wheel.
Tool arm can be moved completely away from the wheel for better access.
Powerful bead breaker with 25,000 N force in both directions.
Robust & Intuitive Cable Remote
Joystick 1 (up/down): wheel up and wheel down.
Joystick 1 (left/right): tool carriage movement.
Joystick 2: chuck opening and closing.
Left pedal: counter-clockwise rotation.
Right pedal: clockwise rotation.
Freely movable throughout the complete working area.
Superior Versatility
Effortlessly handles tyres up to 30" rim diameter.
Accommodates wheels up to 1,640 mm in diameter and 850 mm in width.
Built to handle wheels weighing up to 1,200 kg.
Minimum rim diameter: 14".
Minimum centre bore diameter: 122 mm.
Safety note: For maximum safety, floor-fixing holes are pre-drilled at the factory as standard.
Technical Specifications
Specification Value
Packaging length 1,900 mm
Packaging width 1,520 mm
Packaging height 980 mm
Gross weight 711 kg
Machine length 1,800 mm
Machine height 1,095 mm
Machine width 1,650 mm
Max. wheel diameter 1,640 mm
Max. rim diameter 30"
Min. rim diameter 14"
Machine weight 605 kg
Motor power 1.5 kW
Max. wheel width 850 mm
Max. wheel weight 1,200 kg
Rotation speed 7 rpm
Stackable 2 pieces
Units per 20 ft container 6 pieces
Units per 40 ft container 12 pieces
Min. centre bore diameter 122 mm
Scope of Delivery
Truck mounting lever
Rim clamp
5.3 m cable
400 V plug
All pictures and videos are illustrative.
- Weight 711 kg
- Weight with package 1054 kg
- Dimensions (with package) 152 x 190 x 98 cm
- Sales unit pcs
- GTIN / EAN 1692401008
- Manufacturer part number 1692401008
