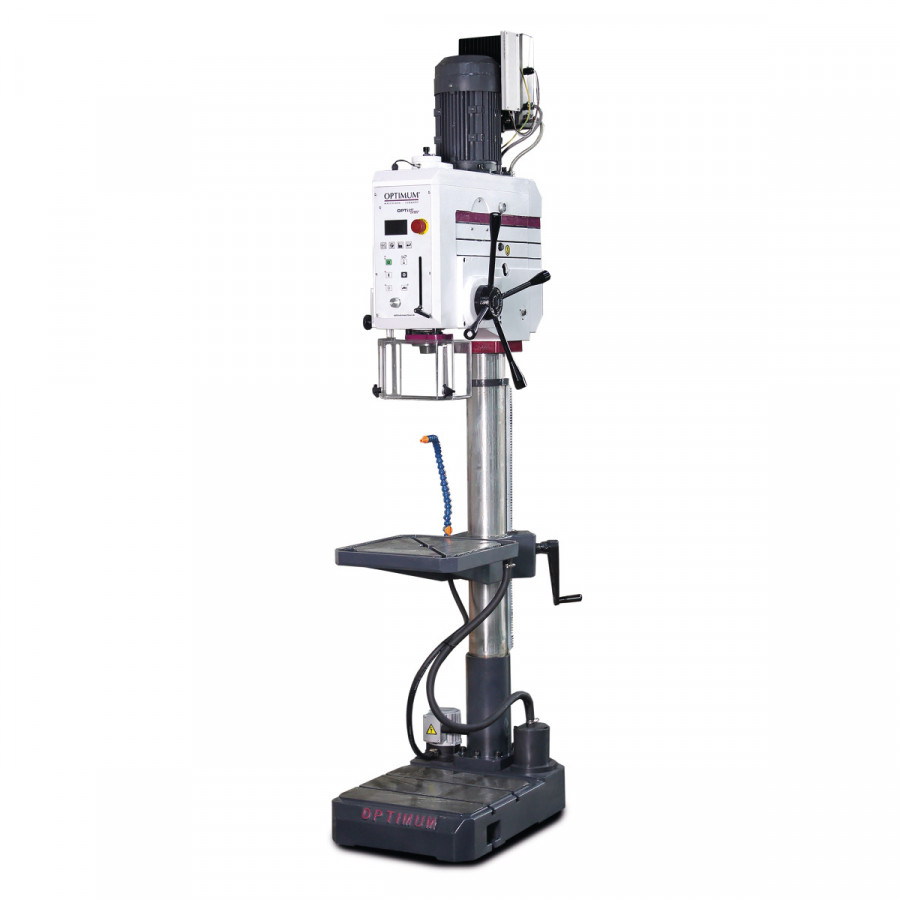

Product info
Electrical connection 400 V / 3 Ph ~ 50 Hz
Motor power 2,2 kW
Drilling capacity steel (S235JR) 35 mm
Continuous drilling capacity steel (S235JR) 26 mm
Throat depth 285 mm
Spindle stroke 125 mm
Spindle seat MT 4
Spindle speed 30 - 2 950 rpm
Drill table size (LxB) 400 x 240 mm
T-slot size 14 mm
Spindle distance - Drilling table 65 - 800 mm
Dimensions (LxWxH) 860 x 474 x 2175 mm
Total weight 450 kg
