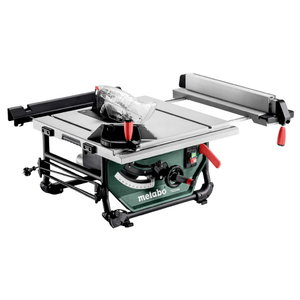

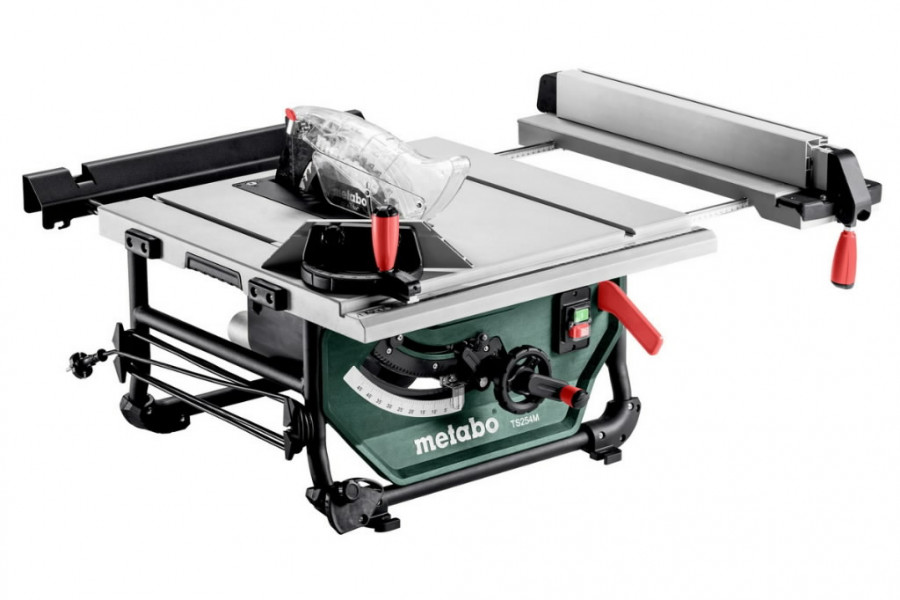

Circular saw TS 254 M

Dimensions: 669 x 748 x 334 mm Working height: 334 mm Cutting height: 0 - 80 mm Maximum cutting height 90/45°: 80 / 48 mm Maximum cutting width at rip fence: 520 mm Maximum material width at mitre fence:195 mm No-load speed: 4200 rpm Cutting speed: 56 m/s Sound pressure level: 92 dB(A) Sound power level (LwA): 105 dB(A) Uncertainty of measurement K3 dB(A) Saw blade: 254 x 30 mm Saw blade swivel range: -1.5 - 46.5 ° Rated input power S1 100%1500 W Weight24.4 kg Cable length: 2.3 m Compact mobile table saw with impressive cutting performance and high comfort for working Anti-twist tubular frame construction for highest demands on the building site and during installations Cables and all add-on components for transport can be stored on the casing Powerful motor with electronic overload protection Motor brake for quick stop of the saw blade in 3 seconds Restart protection: prevents unintentional start-up after power supply interruption Soft start for long service life of motor and drive Precisely adjustable rip fence with double clamping and quick fastening Precise saw blade inclination via gear guide Automatic resetting to 0 – 45 ° after undercuts Easy saw blade change with spindle lock Splitting wedge can be lowered without tools for hidden cuts and transport Precise, extendable table width extension for extra large working surfaces Scope of delivery Carbide saw blade with alternately bevel-ground tips (40 teeth), Rip Fence, Mitre Fence, Table Length Extension, Table width extension (right), Push stick
