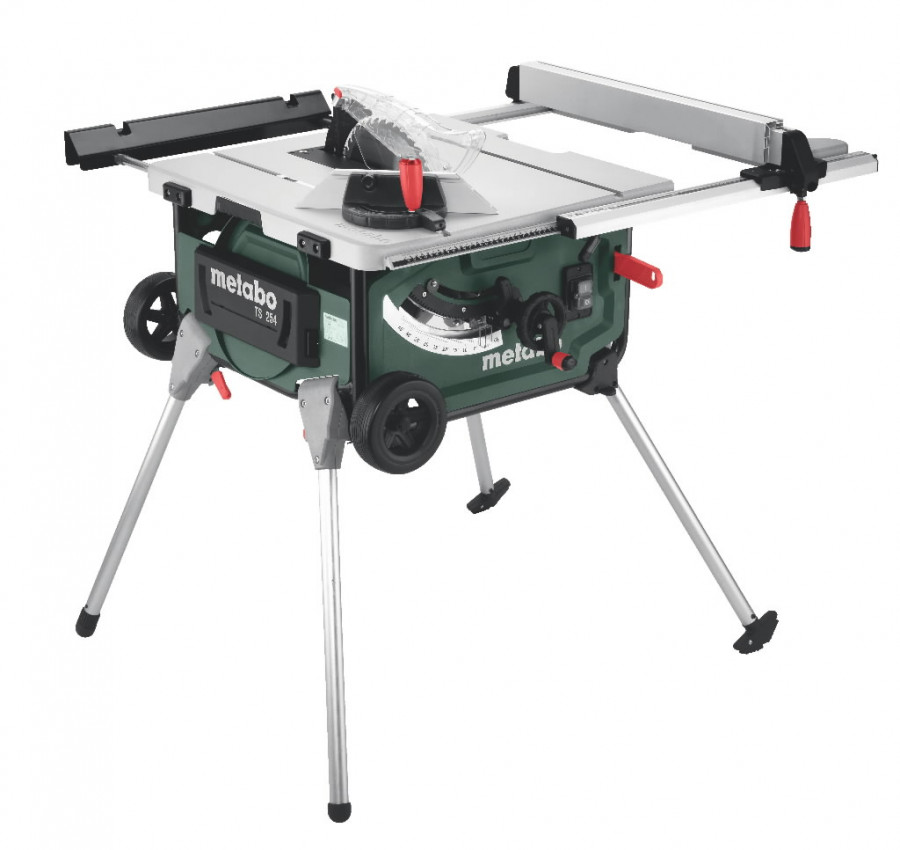

Circular saw TS 254 230/1/50

Dimensions L x W x H 740 x 750 x 355 mm Table size L x W (min./max.) 670 / 970 x 715 / 995 mm Working height 850 / 355 mm Maximum cutting height (90°/45°) 87/ 54 mm Max. cutting width at parallel guide 630 mm No-load speed 4.200 /min Max. cutting speed 56 m/s Saw blade ų 254 x 30 mm Rated input power 2 kW Saw blade swivel range – 1,5 ° to 46,5 ° Weight including stand 33,4 kg Extremely light table saw with trolley function for more mobility on the construction site Integrated stand made from stable die-cast aluminium (patented): unfolded in a matter of seconds with secure stand Very compact with folded stand for comfortable transport and space-saving storage Second working height for working near ground level Anti-twist tubular frame construction for highest demands on the building site and during installations Cables and all add-on components for transport can be stored on the casing Powerful motor with electronic overload protection Motor brake for quick stop of the saw blade in 3 seconds Restart protection: prevents unintentional start-up after power supply interruption Soft start for long service life of motor and drive Precise parallel guide with double clamping and quick fastening Precise saw blade inclination via gear guide Automatic resetting to 0 – 45 ° after undercuts Easy saw blade change with spindle lock Splitting wedge can be lowered without tools for hidden cuts and transport Precise, extendable table width extension for extra large working surfaces Scope of delivery: Carbide circular saw blade with alternately bevel-ground tips (40 teeth), stand, hard rubber tyres, parallel guide/ripping fence, mitre guide, table length extension, table width extension, saw blade case, rubber cable (3 m), push stick
