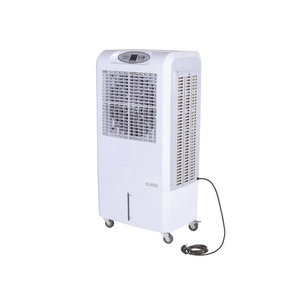

Portable bio cooler CCX 4.0, 4.000 m3/h

Master Bio Coolers cool the air using a simple natural process: the evaporating water decreases the temperature of the air. A pump takes the water from a tank and wets a wide filter of natural cellulose. A powerful ventilator aspires air through the filter. The water evaporates from the filter and decreases the temperature of the air of several degrees. The fresh and clean air flows into the ambient, and cools it. Air displacement: 4000 m3/h. Cooling pad: 40 dm3 Maximum area: 80 m² Power supply: 230/50 V/Hz Power consumption: 150 W Machine dimension (l x w x h): 1230 x 640 x 450 mm Rated current: 1,45 A Fan speed: 3 Water consumption: 5-10 l/h Weight (without water/with water): 22 / 72 kg Tank capacity: 50l Outlet versions: front Direct water connection: yes Product size (l x w x h): 640 x 450 x 1160 Key features • Attractive compact design • Low installation, running and maintenance costs • Remote control for easy operation • Different settings and running features • Handles to easily carry the unit • Wheeled units with integrated water tank for multiple applications • Long uninterrupted running time without the need to refill water • Ionizer to improve air quality • Low-noise level making it ideal for terraces Benefits of evaporative cooling • The use of Master air coolers strongly reduces the CO₂ impact compared to air-conditioners • Clean air that reduces the risk of bacteria and virus • No chemicals or refrigerants • Low energy consumption • Virtually maintenance-free equipment How does it work The heart of the evaporative cooling system is the cooling pad where the water evaporates and the air passing through the pads is cooled. Evaporative cooling pads are manufactured from fluted cellulose sheets that are glued together. The material is chemically impregnated with special compounds to prevent rot and ensure a long service life and easy maintenance. Evaporative cooling and humidity A given volume of air at a certain temperature and pressure is capable of absorbing and holding a certain amount of water vapour. If that volume of air contains 50% of the moisture it is capable of holding, we say it is at 50% relative humidity. The hotter the day, the drier the air, the more cooling can be done by means of evaporation. In other words, the cooling effect is best when you need it most. Our evaporative coolers are developed to work well in high-humidity environments too, however, and will remain much more efficient than a simple fan that just circulates warm air. Our coolers will increase humidity by 2 to 5%, depending on temperature and humidity in the environment you want to cool. The slight increase is not noticeable in ventilated areas where the air produced by the unit is exhausted. Industrial applications Quiet running Adjustable speed Automatic swing function as a standard Time setting function Large water tank for longer operating hours Large wheels and brake allow easy movement No need for compressed air No installation, no duct work required Easy to use, easy to clean Corrosion resistant plastic casing Easy to maintain Automatic water supply Remote control
