Product info

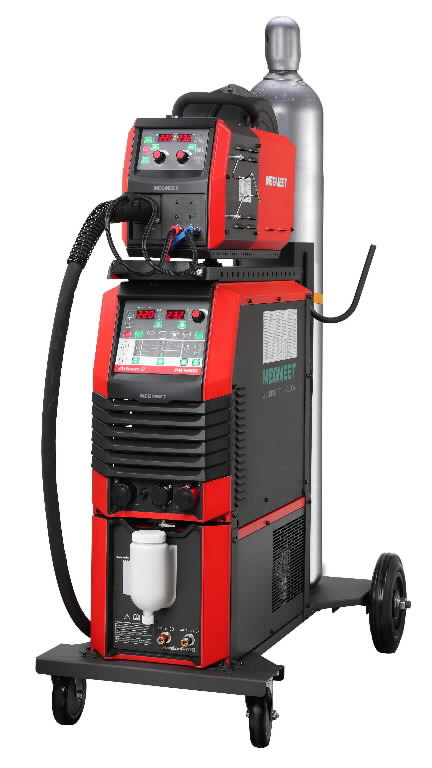

Inverter based professional welding machine with separated wire feeder. It is suitable for MIG/MAG and Pulsed MIG welding of mild steel.
Easy settings with synergic welding programs and intuitive interface.
Perfect wire feedability: 4 drive rolls.
Technical specifications:
Input - 380V +/-25% 3f/50Hz.
Current range - 30-400A.
Duty cycle - 400A @100%.
Welding modes - 2T / 4T / Special 4T / Spot Welding / Intermittent Welding.
Welding programs (mild steel only):
- solid wire 0,8/1,0/1,2mm at 100% CO2 and 80% Ar + 20% CO2
- flux cored wire 1,2mm at 100% CO2.
- single pulse 0,8/1,0/1,2mm.
- double pulse 0,8/1,0/1,2mm.
Wire range - 0,8-1,2mm.
Protection class - IP23S.
Kit includes:
Power source, wire feeding unit, liguid cooling unit, 5m interconnection cable, trolley, ground cable (5m*35mm2), input power cable (3m), V-type drive rolls 0.8mm/1.0mm and 1.2mm/1.6mm.
Warranty period for power source is 36 months. The warranty period for other components (wire feeder, cooler, etc) is 12 months.
- Weight 60 kg
- Weight with package 60 kg
- Sales unit pcs
- GTIN / EAN S000000003
- Manufacturer part number S000000003
