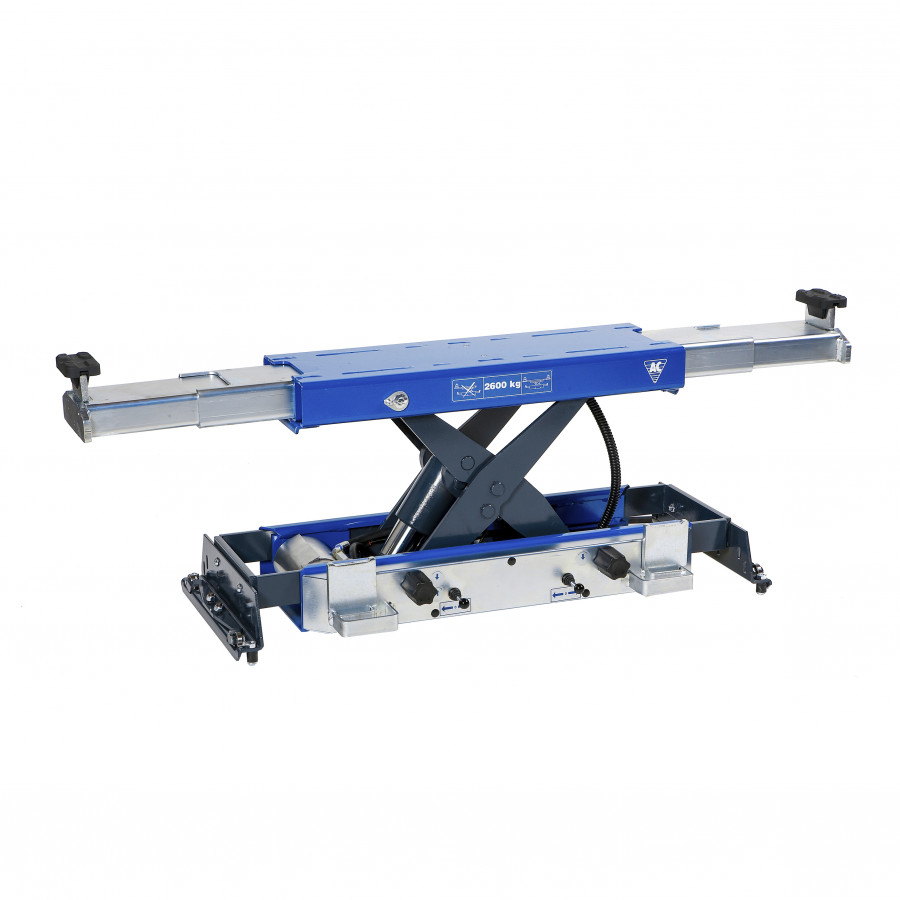

Automatic air hydraulic jacking beam + support arms SD26PHL-
Product code: SD26PHL-A&ACAsk for Offer
Available to order. The delivery time will be confirmed after the order is placed. If it doesn’t work for you, you can cancel.
Product info
Capacity: 2,6 t
Stroke: 250 mm
Min height: 180 mm
Width without mounting brackets: 780 - 1180 mm
Lifting frame height: 120 mm
Lifting frame depth: 250 mm
Air supply: 8 - 10 bar
Air consumption: 400 - 700 l/min
Weight: 110 kg
