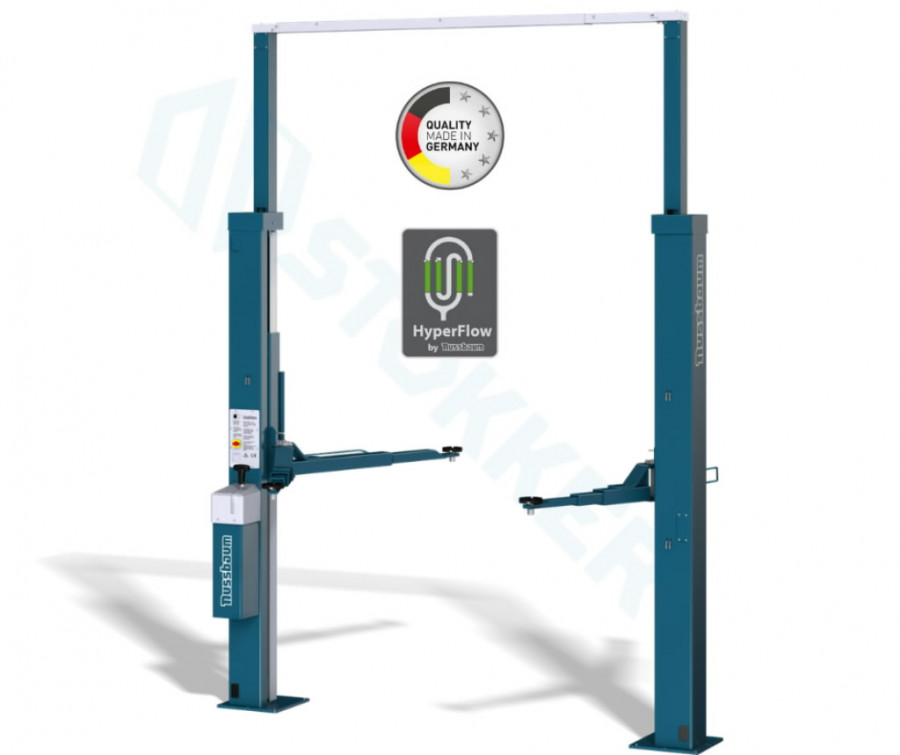

2-post lift HF 3S 3000 DT 3T

Technical specifications: Capacity 3000kg Lifting height 1995mm Lifting time 20s Lowering time 14s Lowest lifting point 95-140mm Long arm extraction 940-1495mm Short arm extraction 480-870mm Drive through width 2301mm Distance between columns 2560mm Total width 3100mm Total height of the column 4040mm Required ceiling height 4182mm Motor capacity 3kW Power 400V/50Hz Fully hydraulic two-post lift with patented HyperFlow® technology and mechanical safety latch for triple security. Quiet running motor, faster lifting and lowering cycles. Controls via commander lever. Simple and safe synchronous lifting arms compensation via patented HyperFlow® technology replaces mechanical lifting arm compensation using cables. No base plate connection. Low-maintenance and almost wear-free hydraulic cylinders. Self-purging hydraulic system. Simple and fast assembly. Variable installation width. The lifted load can be controlled by lowering into and lifting from the park position using the safety latches. All pictures and videos are illustrative.
