Product info

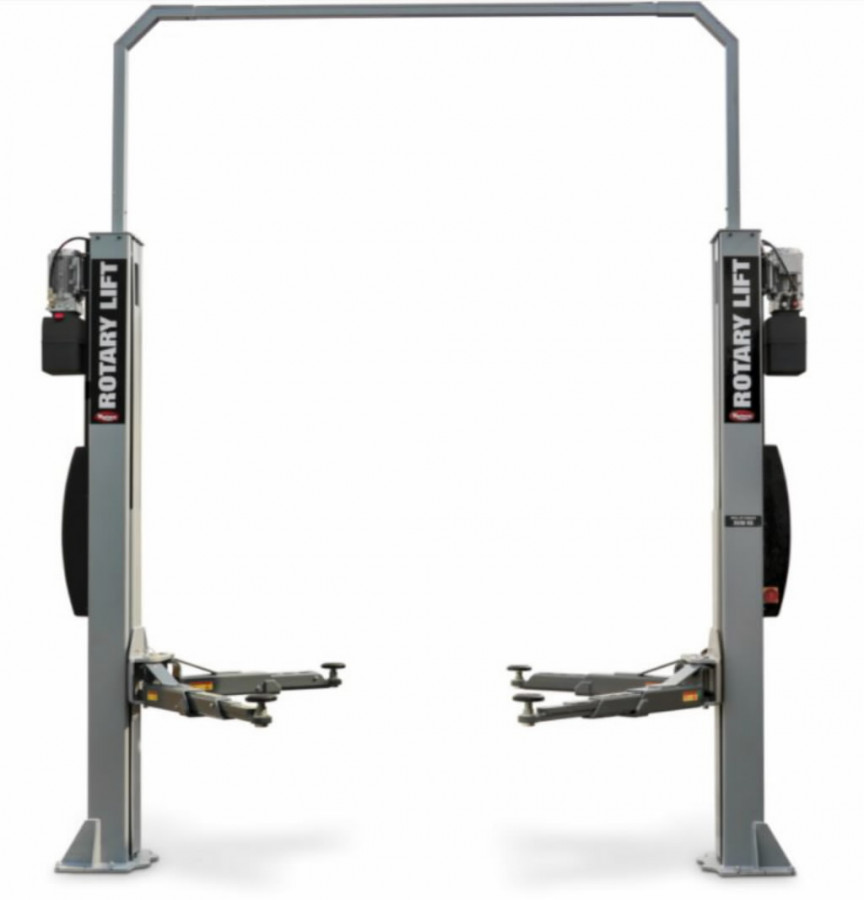

2-Post-Lift with electrically operated unlocking device, asymmetric columns and arms. Electrohydraulic operation, lift without baseframe.
Operated by 2 powerful hydraulic units, flexible cross-connection without static function. Two maintenance-free hydraulic cylinders.
Lifting and lowering via push button control (on both sides)
Lifting Capacity 3.500 kg
Lifting Height 1974 mm
Drive-on height min. 90 mm
Drive-on height max. 146 mm
Distance between columns 2685 mm
Column height 2908 mm
Drive-through Width 2388 mm
Required ceiling height 3058 mm
Length of support arm front min. 550 mm
Length of support arm front max. 1106 mm
Length of support arm rear min. 600 mm
Length of support arm rear max. 1280 mm
Electrical connection 400 V / 50 Hz
Motor 2x 1,5 kW
Time of full rise approx. 39 Sek.
Weight 730 kg
