Product info

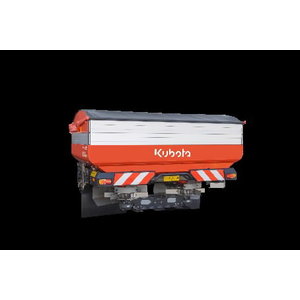

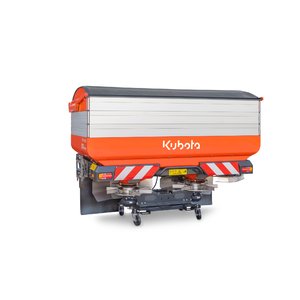

Fertilizer spreader for precision farming and with weighing system
Optimal spreading of fertiliser means using exact amounts of nutrition and avoiding overlap. Different fertilisers have a mix of different granular sizes, which is influencing the spreading pattern and the maximum possible spreading width. The flow rate will depend very much on the fertiliser properties (granules size, shape and weight) and will change with increasing or decreasing the humidity. The ideal fertilizer has 80% of the granules in the size range 2- 4,75 mm - then wider working width, than bigger granular size should dominate. But not over 4,75 mm, as too big granules may damage the crop. A good blend needs granules with similar specific weights and similar sizes.
Kubota spreaders discs have 8 large spreading vanes, which allow most accurate spreading pattern and reduce wearing of vanes.
RotaFlow system:central release point, smooth acceleration and centrifugal force accelerates fertilizer up to disc speed before it reaches the vane: no fragmentation, no dust.
Flat discs, horisontal spreading pattern - minimal wind influence, maximum tolerance.
Guaranteed accuracy on slopes.
Standard features
• Stainless steel front plates
• Fine application kit
• Overload clutch
• Stainless steel hose connections
• 2 High capacity & robust sieves
• Tool to open the sieves
• Inclinometer
• Grading box to test the fertiliser quality
• Open/close indicator
• Top and bottom hopper windows
• Low speed agitator (15%)
• LED lighting set
Pictures are illustrative and for non-contractual use
• Basic Section Control
• Max. 14 sections of 4m
Hopper capacity: 1875l
Hopper extension 675l, in total 2550l
Filling height: 120cm
Total width: 290cm
Filling width: 284cm
Empty weight: 535kg
Spreading width: 12-54m, over 45m only with optional vane set
Output: 10-320kg/min
Optional equipment (included in price):
* Reflector set
* LED road lights
* Righthand flow limiter TrimFlow/ExactLine ECO RH
* Hopper extension 675l
* Hopper cover, gray
* Hopper emptying kit
* Mudguards 1500/1875l
* Foldable side step 1500/1875l
* Kit IM Tellus PRO IM Power KUB
* Kit IM Global 3 DGPS KvG
Manufactured in Netherland Kverneland Nieuw-Vennep factory
Warranty 2 years
