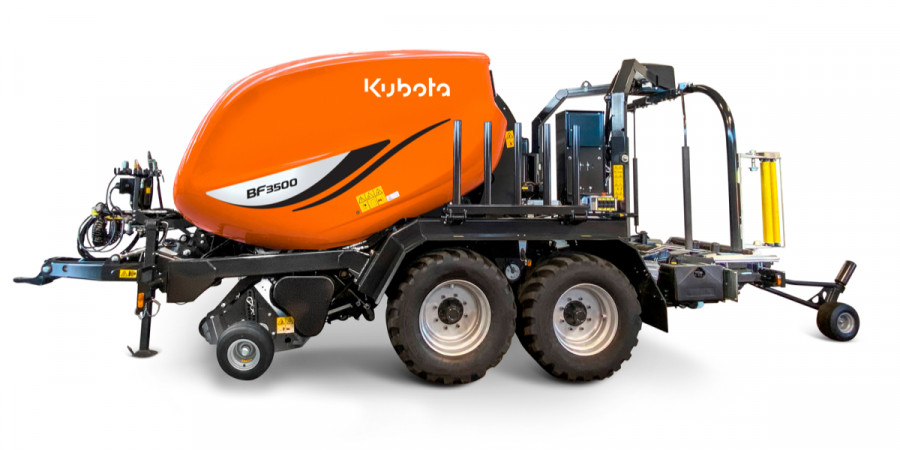

Combibaler KUBOTA BF3500FW CF15N

Fixed chamber tandem axle combibaler Centralised lubrication Automatic chain lubrication The ideal solution for cost effective one-man operation Triple rollers pre-stretchers for high quality wrapping Perfect bale stability even in hilly conditions Low net loading height and hydraulic operation of spare film cassettes ensure long days baling: high on output and low on stress Full ISOBUS compatibilty Lowest loading height in the market High density bales, 18 rollers baler chamber, hydraulic density and heavy-duty driveline Gentle bale transfer Storage for 10 rolls of hydraulic film for high comfort High-speed twine satellite wrapper for fast wrapping External control panel for simple maintenance Tandem wheels for low soil compaction ChopFeed 15 knives with individual knife protection 2,30m large working width pick-up Low centre of gravity for enhanced machine stability The complete machine functions under full automation Length: 7,40 m Width: 2,99 m Height: 3,00 m Weight: 6700 kg No of rollers: 18 Bale chamber diameter: 1,25 m Bale chamber width: 1,23 m Central roller bearing greasing system: +, automatic optional Working width: 2,30 m, tine to tine width 1,98 m Tine rows: 5 Tines per row: 34 Tine spacing: 60 mm Crop roller: + 2 pneumatic gauge wheels: + ChopFeed intake: 15 knives Single knife protection: + Parallelogram Drop floor: + Main drive chains: HBC 1,25" Automatic chain lube system: + Cam clutch protection: + Integrated one piece gearbox: + Net storage: 1 roll Wrapping unit Bale transfer mechanism: transfer table Support rollers/belts: 2/4 Film pre-stretchers:2 Film cutters: 2 Film roll magazines: 10 Bale turner: +, optional Isobus compatibilty: + Isomatch Tellus GO & Isomatch Tellus: +, Hydraulic outlets: 1 SA + load sensing Wheels: 560/45-22.5, optional 710/35-22.5 Brakes: * Dual-line AIR brake system FW Reversible drawbar: + PTO speed: 540 rpm Min power requirement: 140 hp Chosen optional equipment (included in price): * Automatic greasing * Bale turner * Wheels 710/35-R22.5 for double axle * Tear drop plate HD Fix * Starter Kit - HD Fix * Additional roller wrap table FW * Terminal Kit IM Tellus GO+ IM Power KUB (7" isobus terminal) Possible to choose additionally as optional equipment (not included in price): * Set of blank knives CF15 * Additional set of knives CF15 * K80 ball coupling hitch FW * Falling mat FlexiWrap * Single film mode FlexiWrap * Bale spinning * Kit IM Tellus PRO IM Power KUB (12" isobus terminal) Manufactured in Italy Kverneland factory Warranty 2 years Pictures are illustrative and for non-contractual use All pictures and videos are illustrative.
